Star Trek: The Next Generation
Playfield Teardown


[First] [Prev] [Next] [Last]

Click to enlarge Click to enlarge Click to enlarge Click to enlarge
61

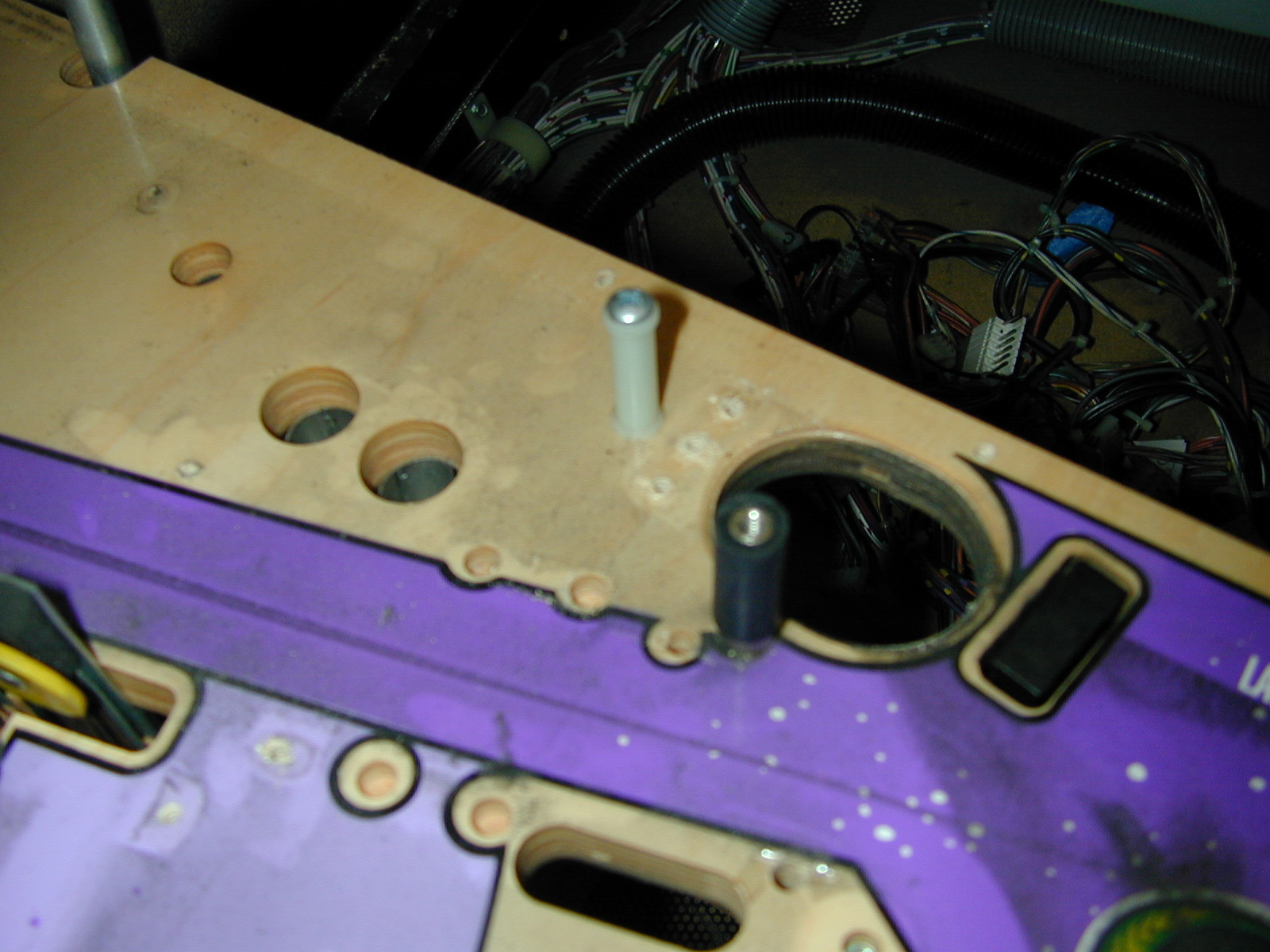

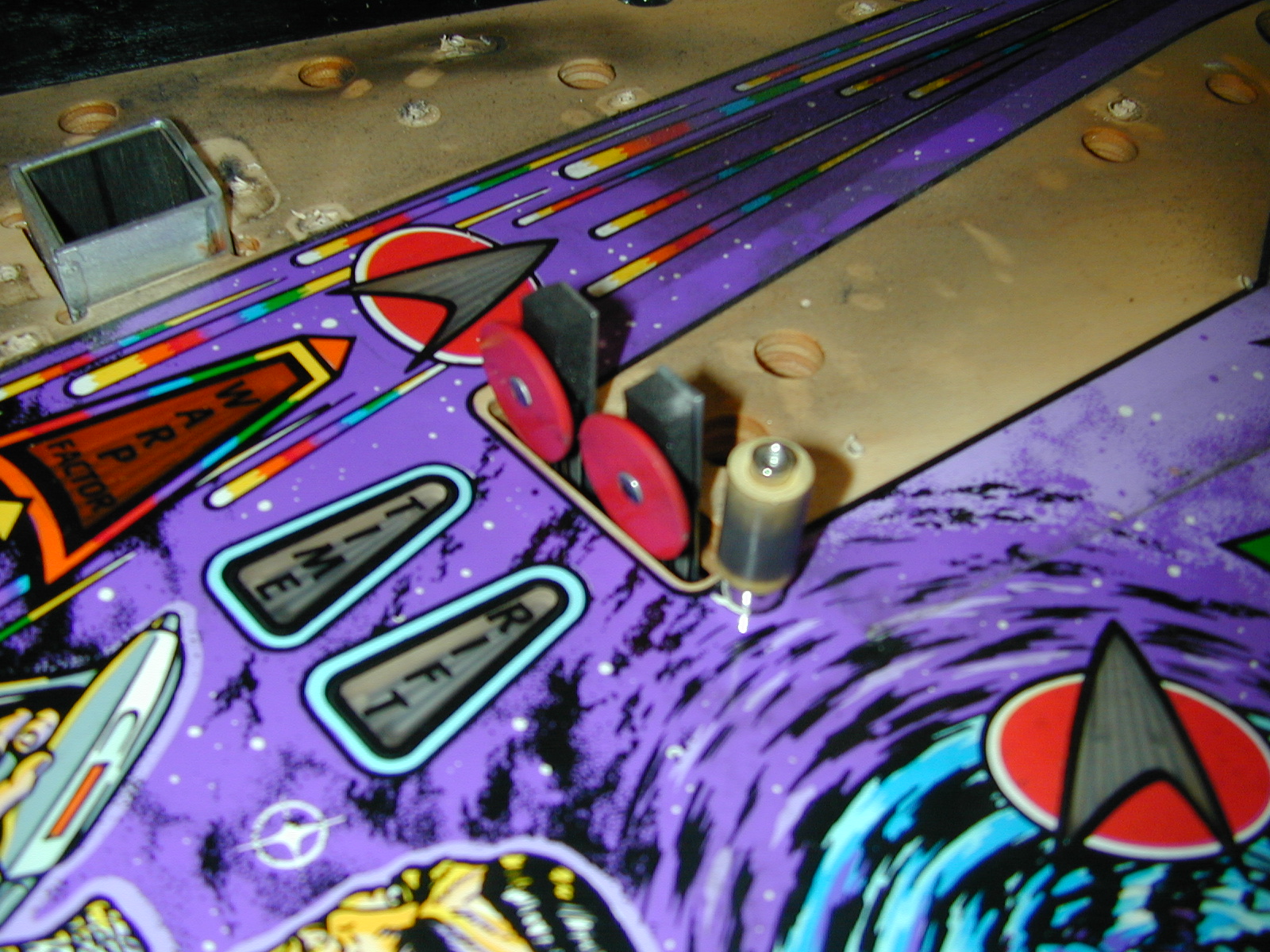

1 Yellow sleeved post to right of rift target		 62

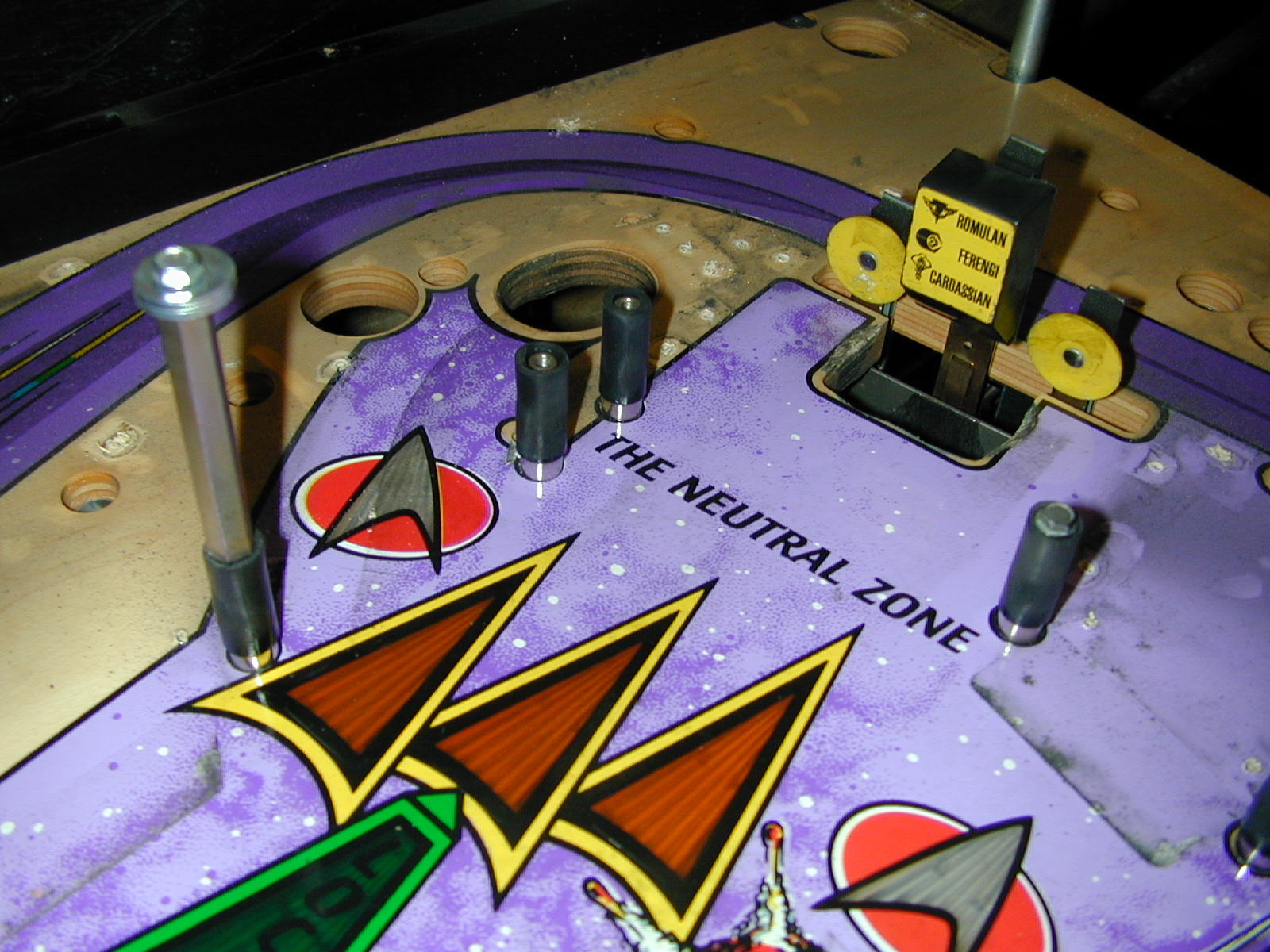

5 BSP around neutral zone - lower left with long stud, right with MS		 63
2 posts around upper center hole - lower BSP, white sleeve on left		 64

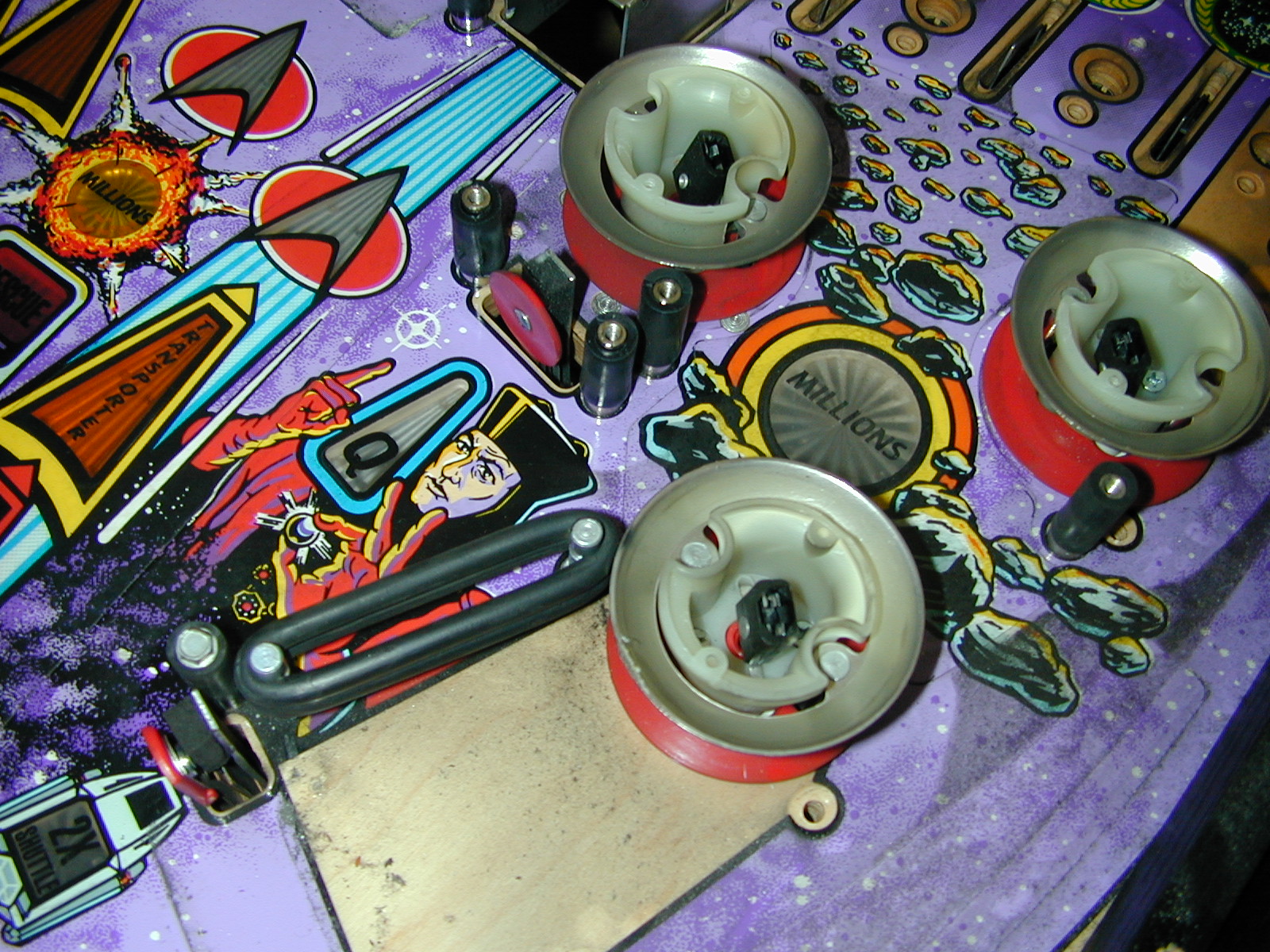

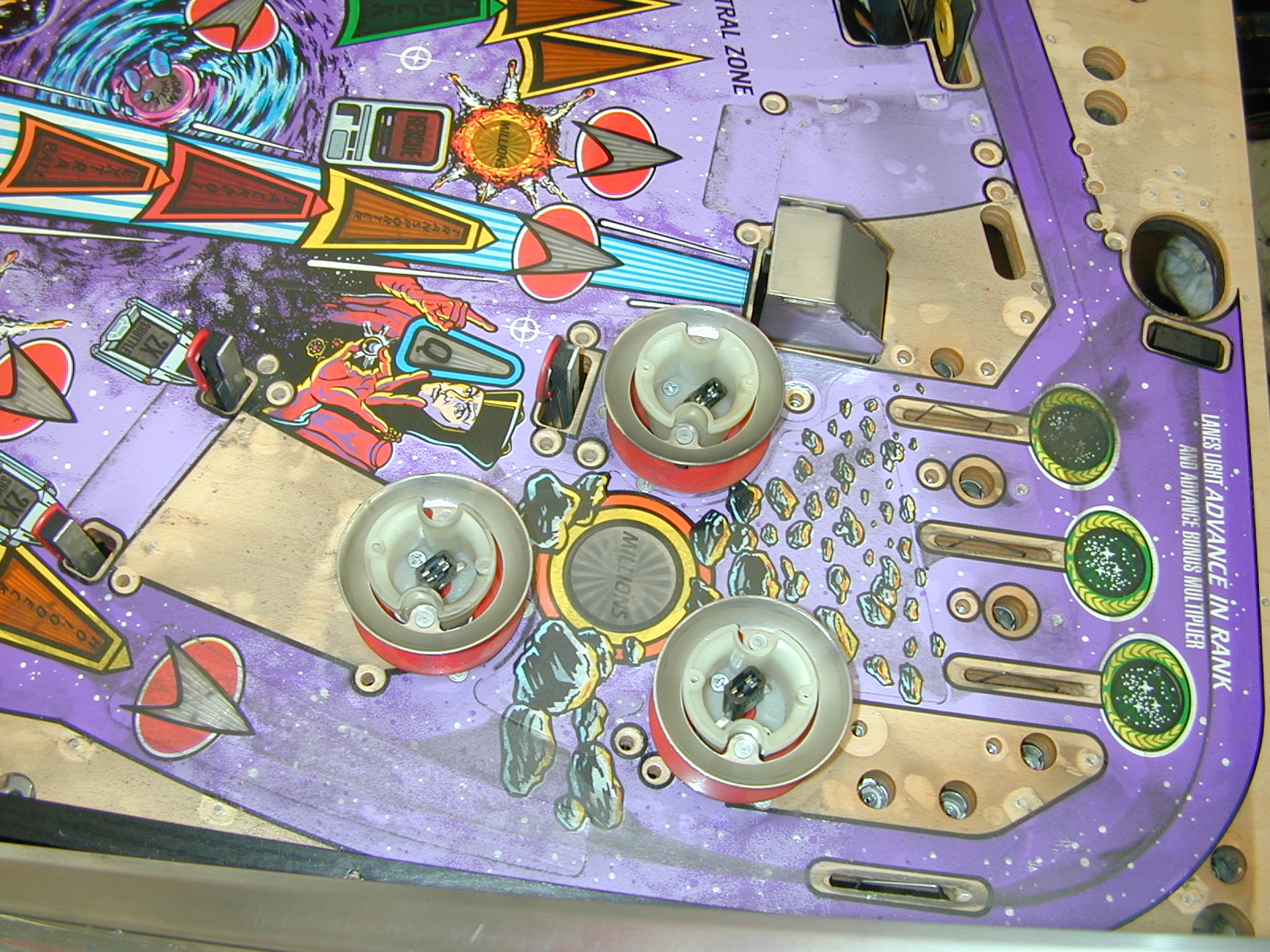

5 BSP around pop bumpers, 2 posts with 2 rubbers to lower left of bottom pop bumper
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
65
2 BSP around right target bank		 66

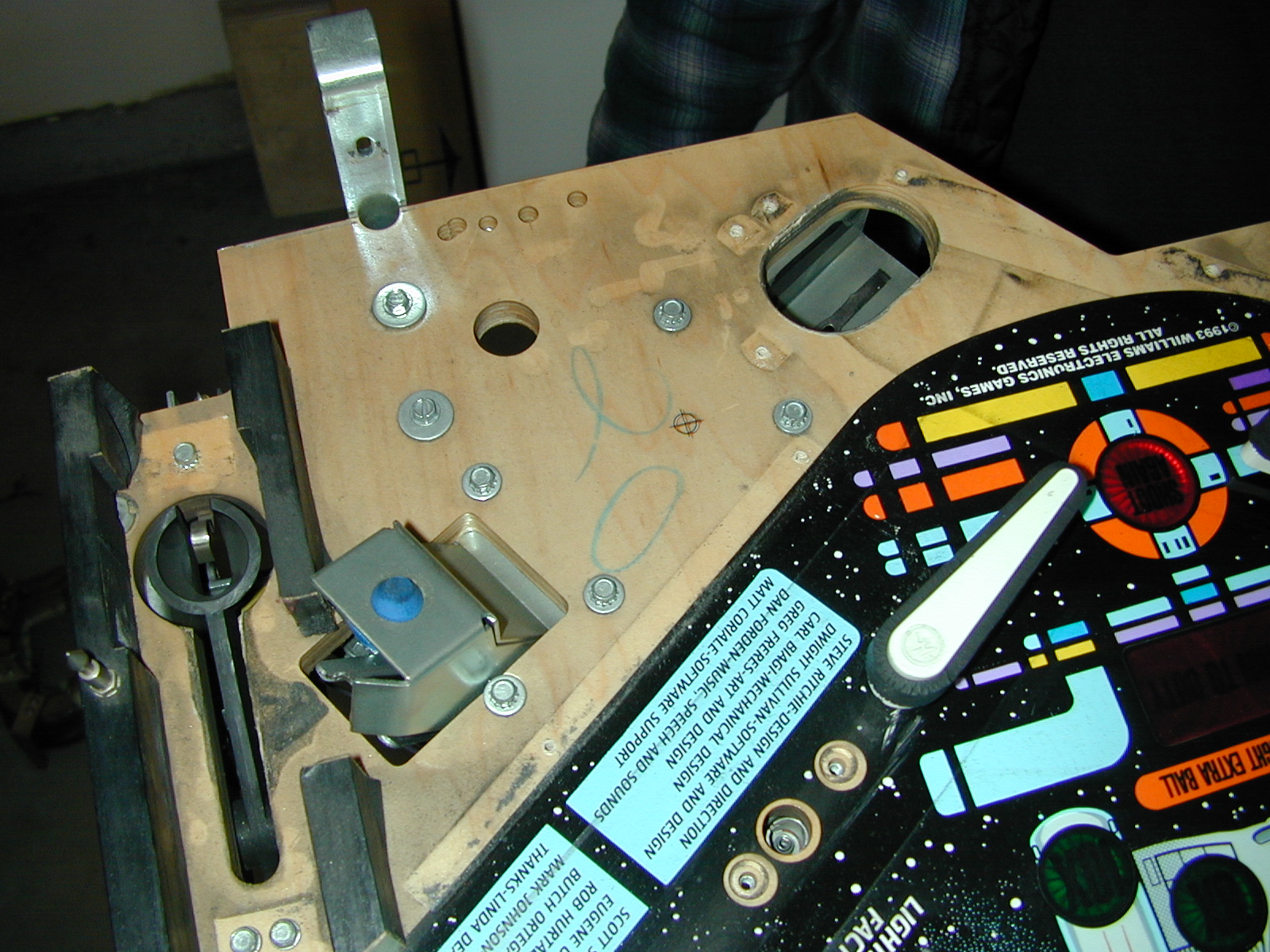

Trough ass'y - 6 MS		 67
3 flipper bats		 68
2 #44s on sockets under slings - 2 WS
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
69
2 WS, 1 MS in shooter lane for wire ramp		 70
3 pop bumper ass'y - 6 nuts with washers		 71

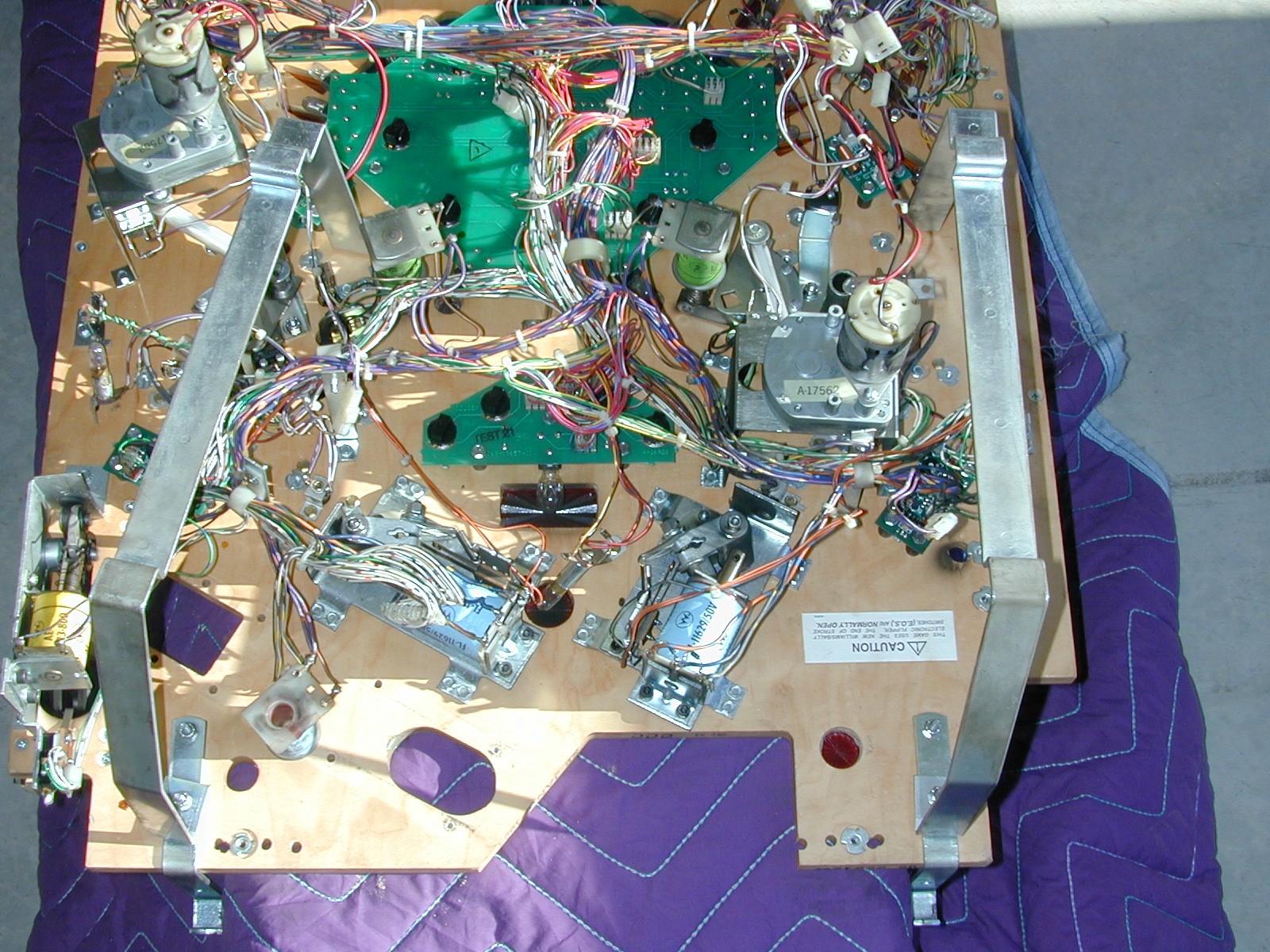

Playfield slides		 72
Playfield supports
