Star Trek: The Next Generation
Playfield Teardown


    [Next] [Last]

(Note : metal habitrails had been removed prior to this teardown for plating)
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
1

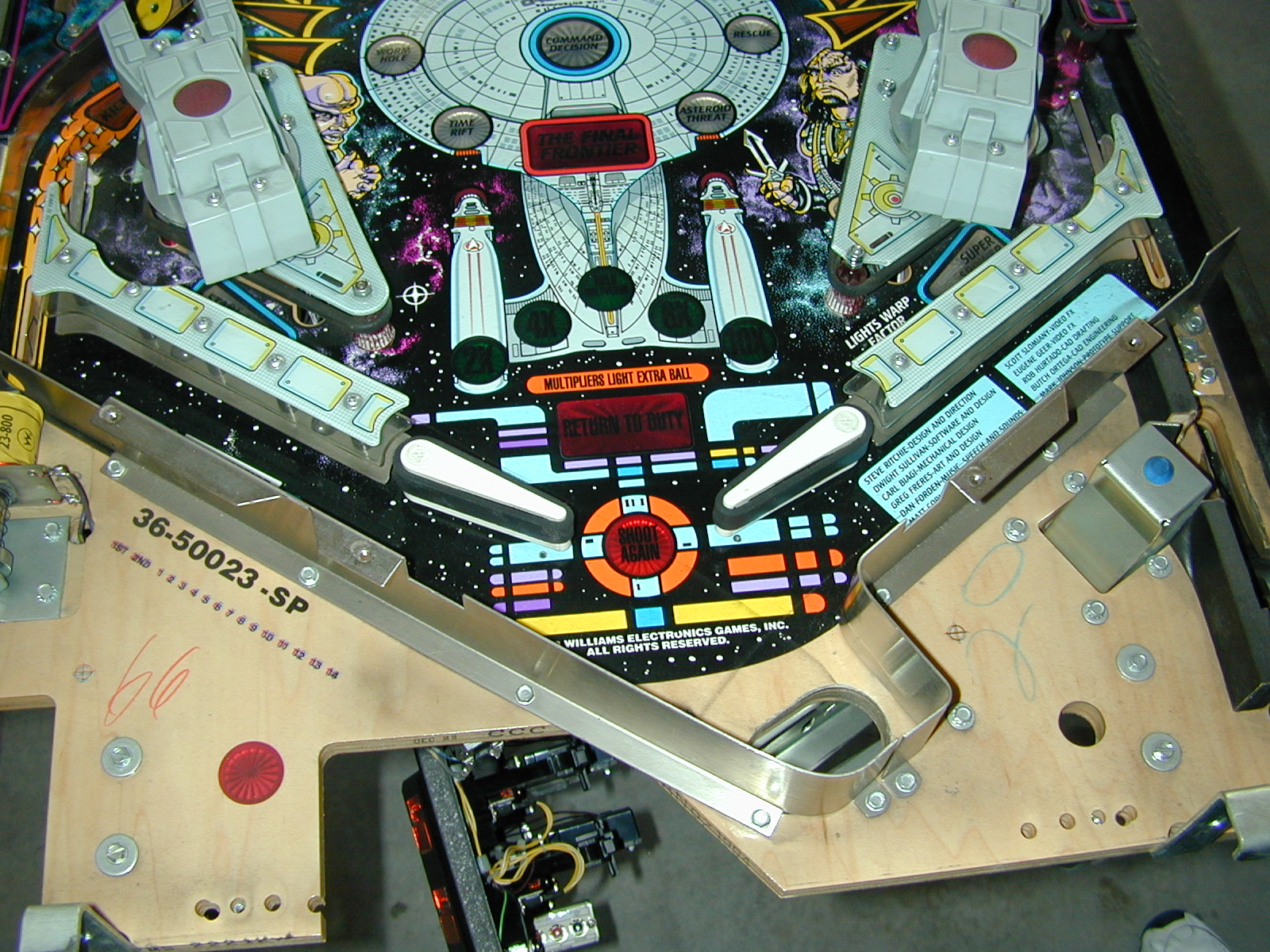

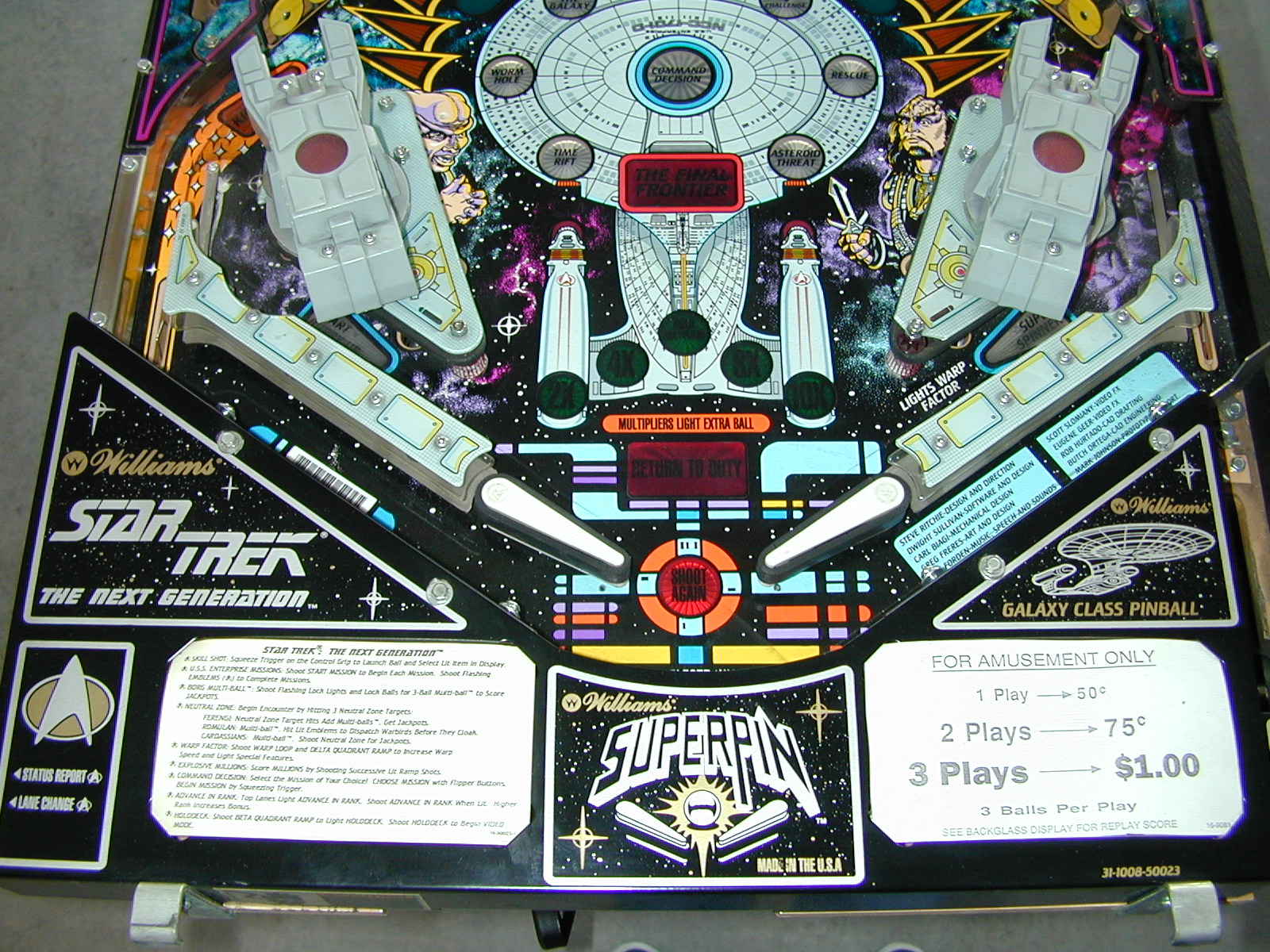

Arch - 4 machine screws (MS), 2 wood screws (WS)		 2
Two arch metal guides - 9 WS		 3

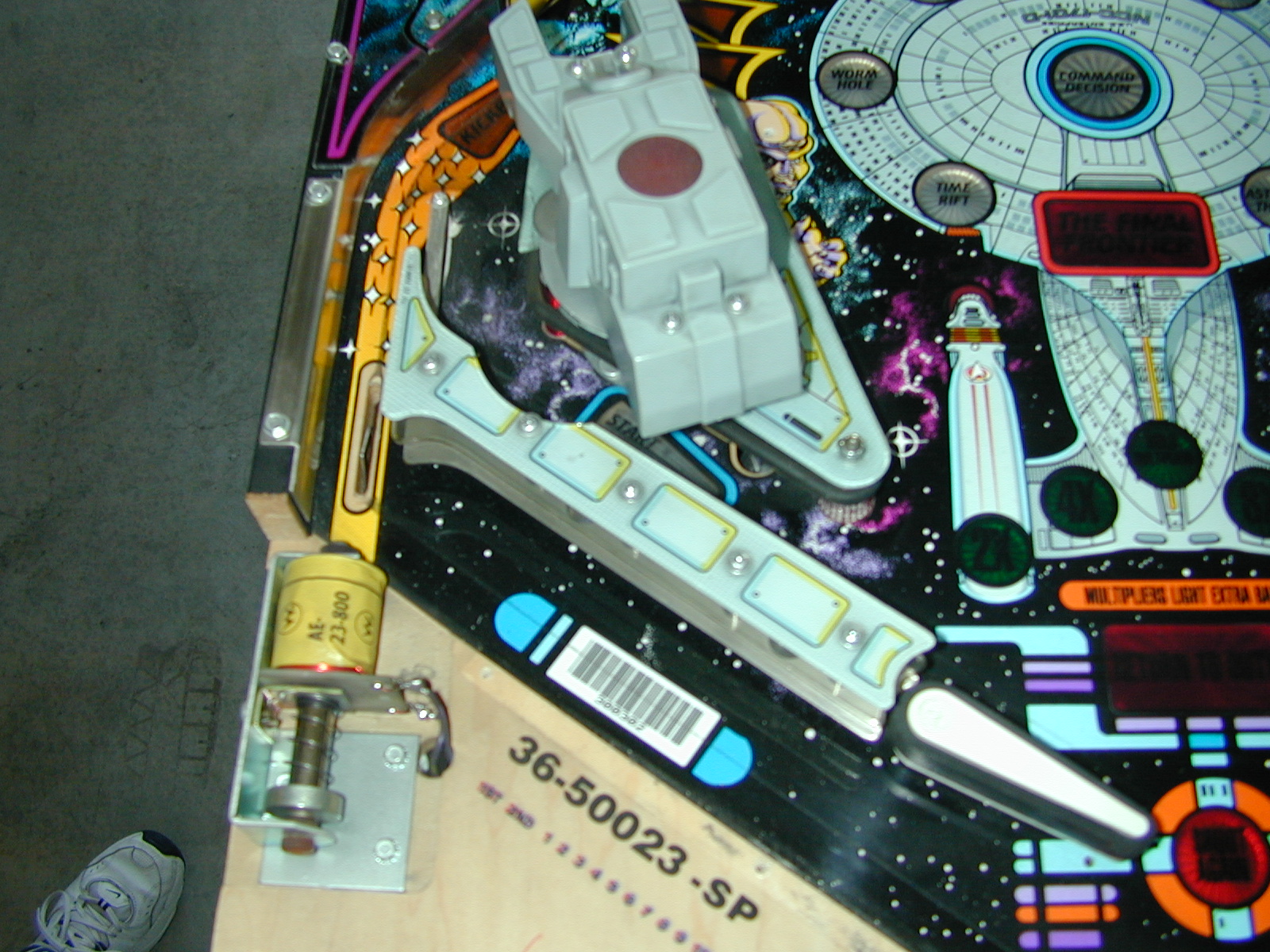

Left inlane guide ass'y - 5 MS, 1 small WS		 4

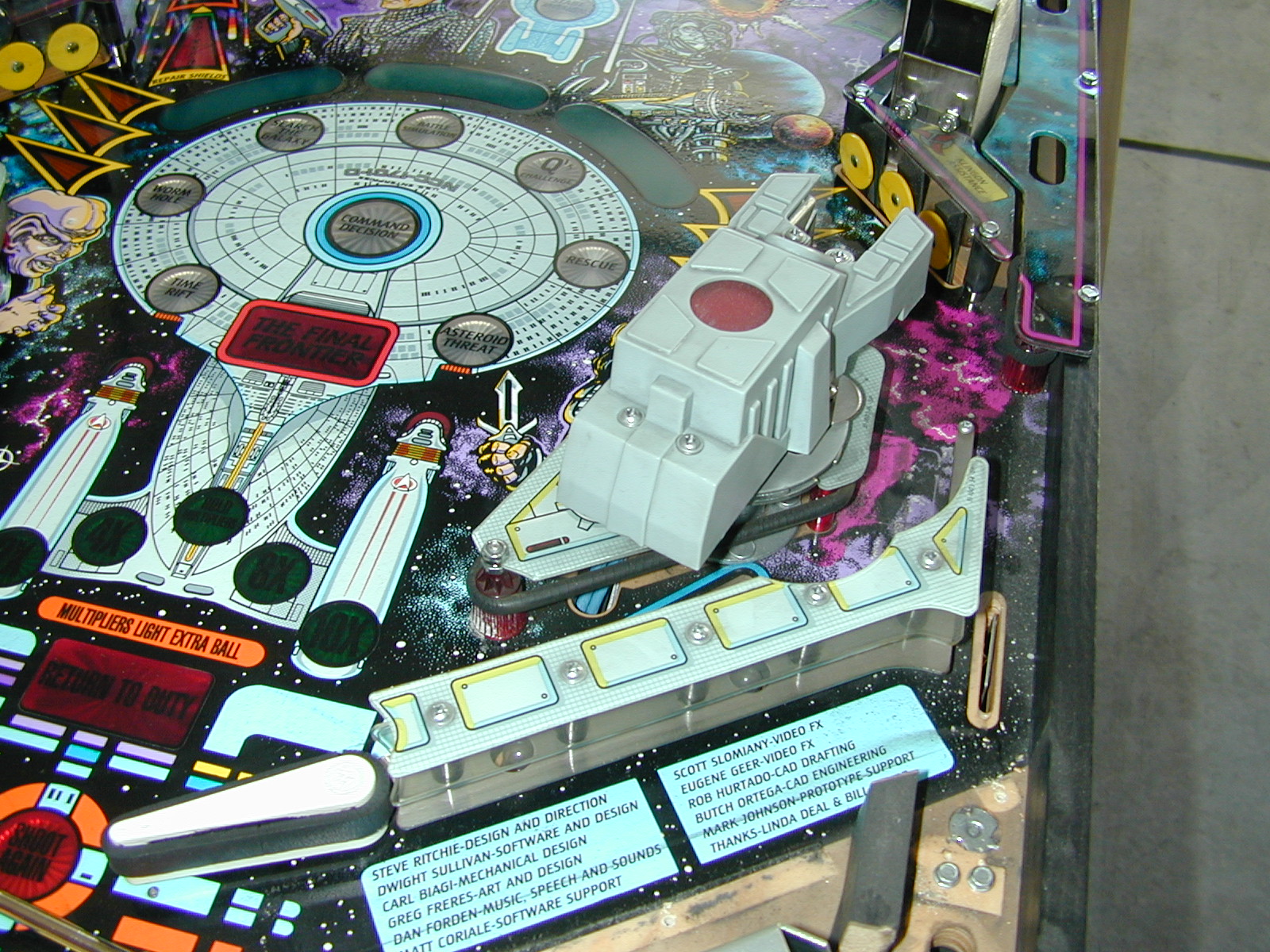

Right inlane guide ass'y - 5 MS, 1 small WS
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
5

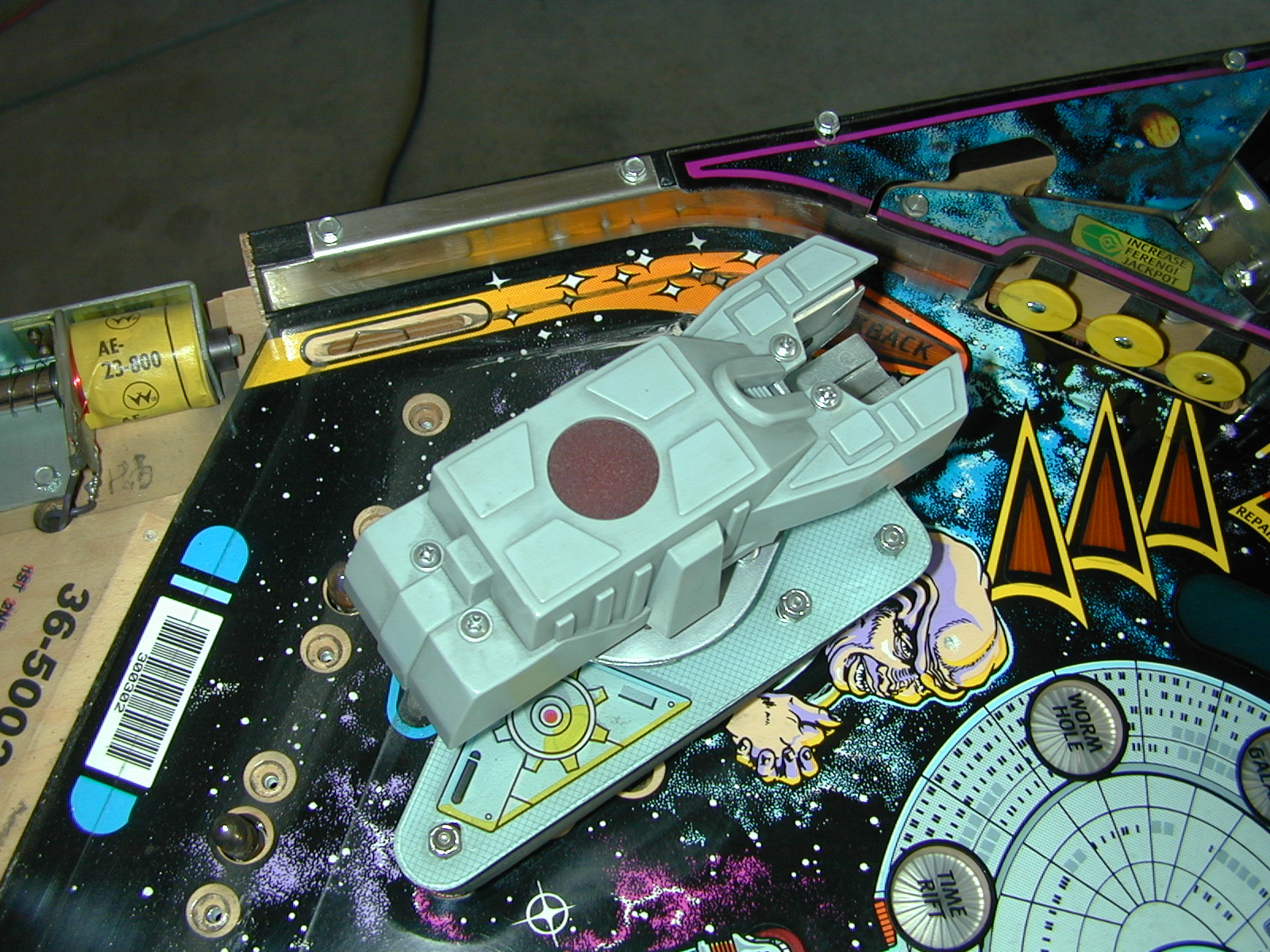

Left  cannon cover - 4 MS		 6

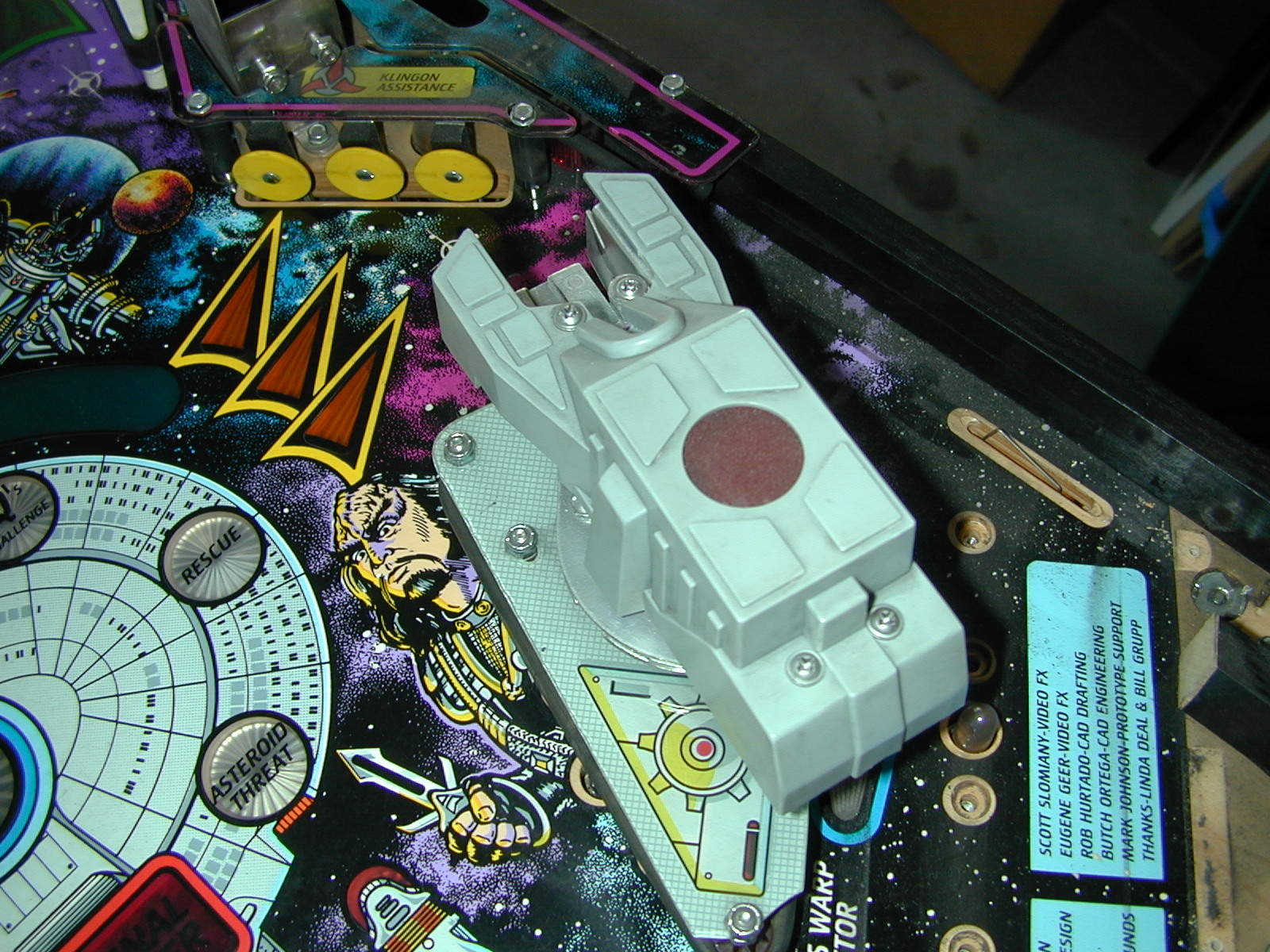

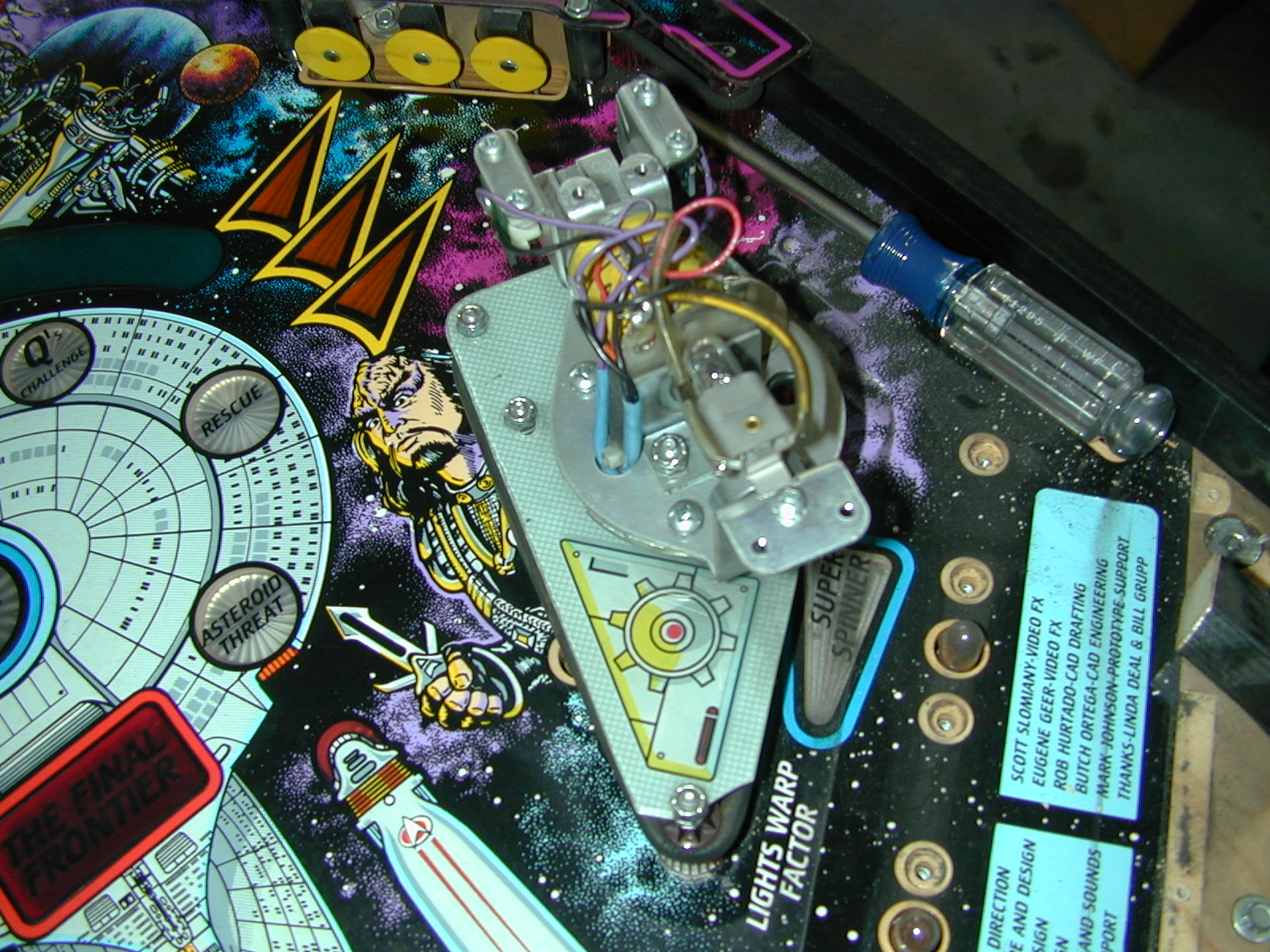

Right cannon cover - 4 MS		 7
Left sling plastic and rubber - 3 nuts		 8
Right sling plastic and rubber - 3 nuts
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
9

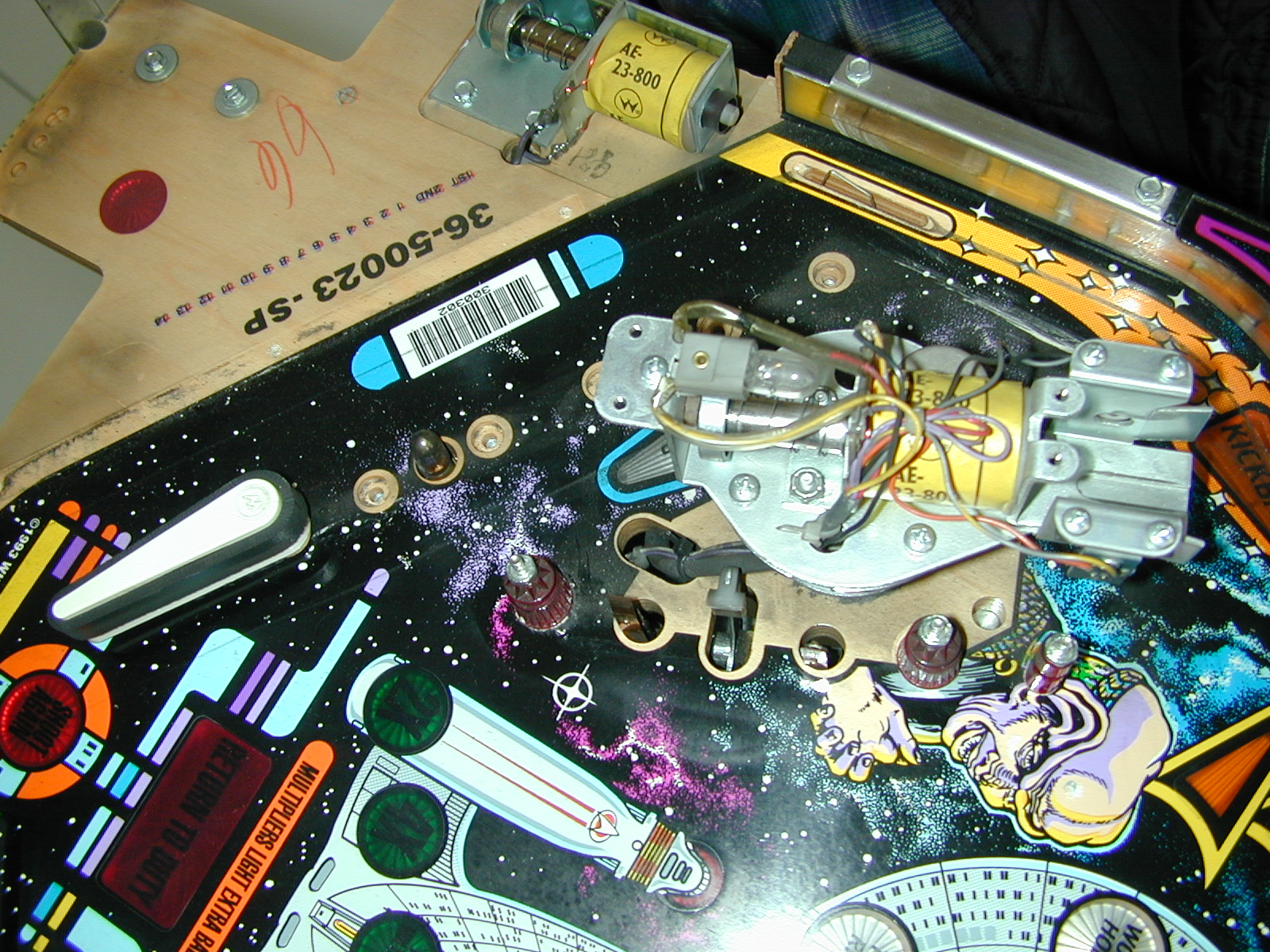

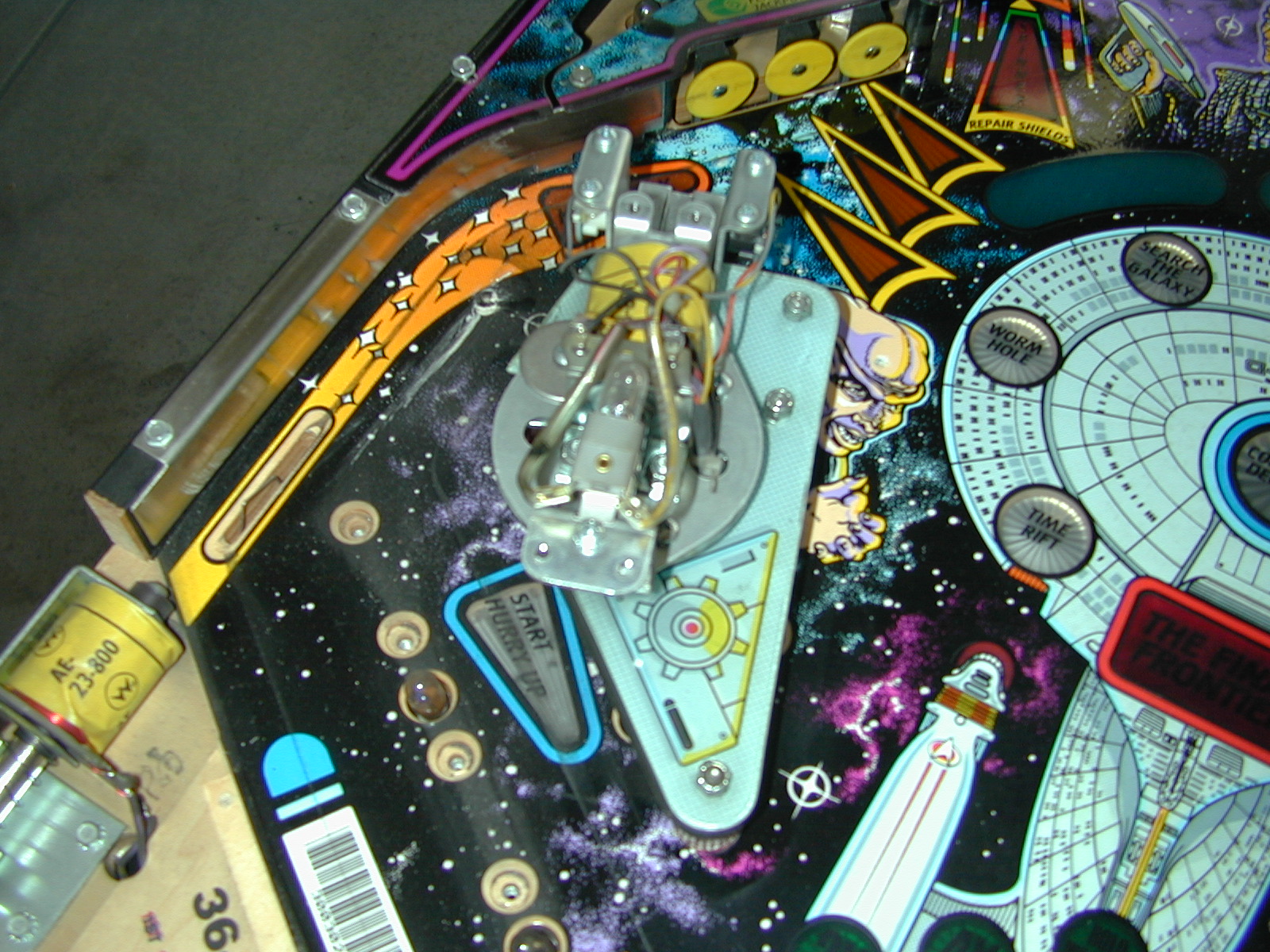

Left cannon ass'y - 3 connectors (CON), 1 MS		 10

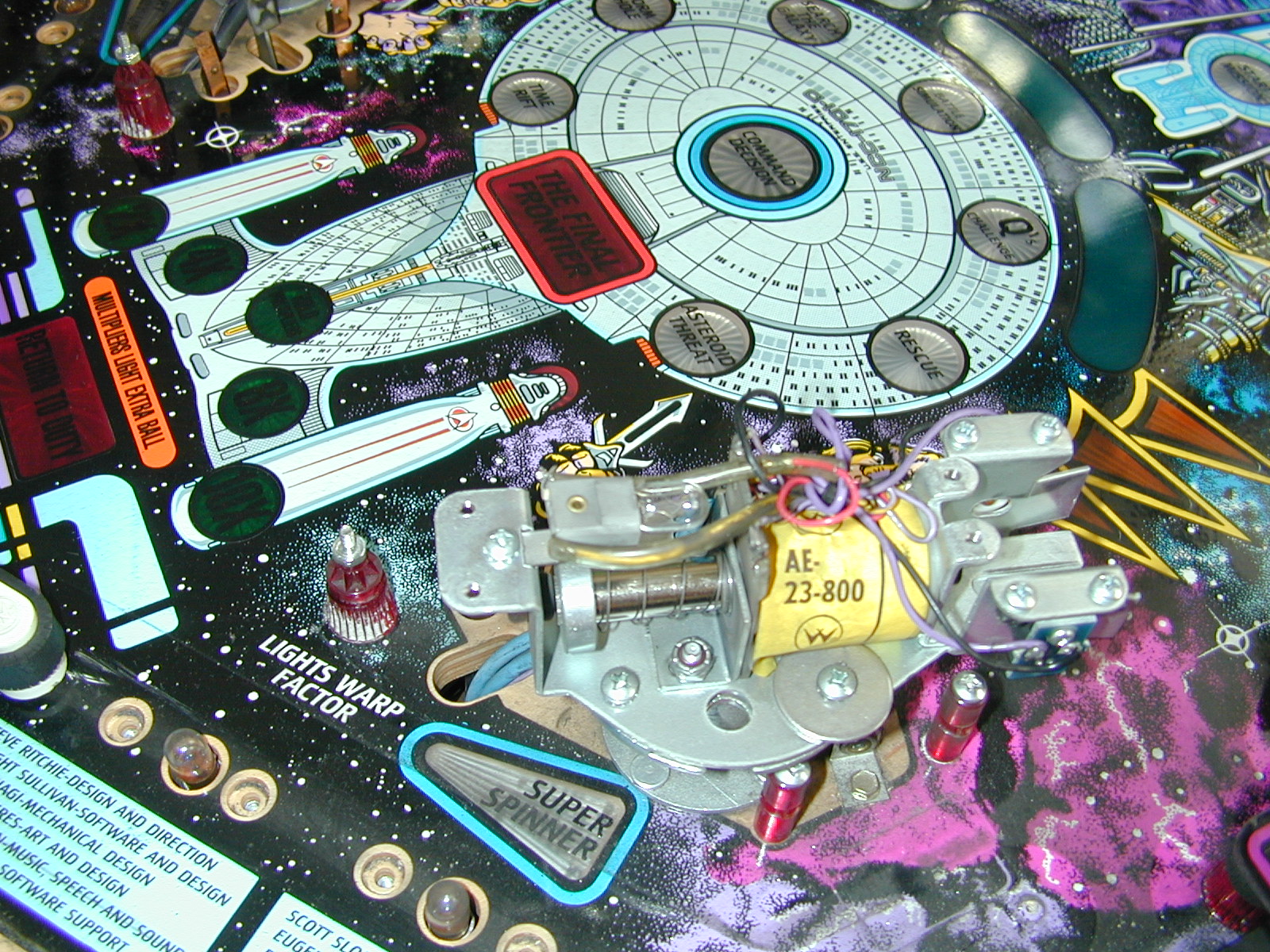

Right cannon ass'y - 3 CON, 1 MS		 11

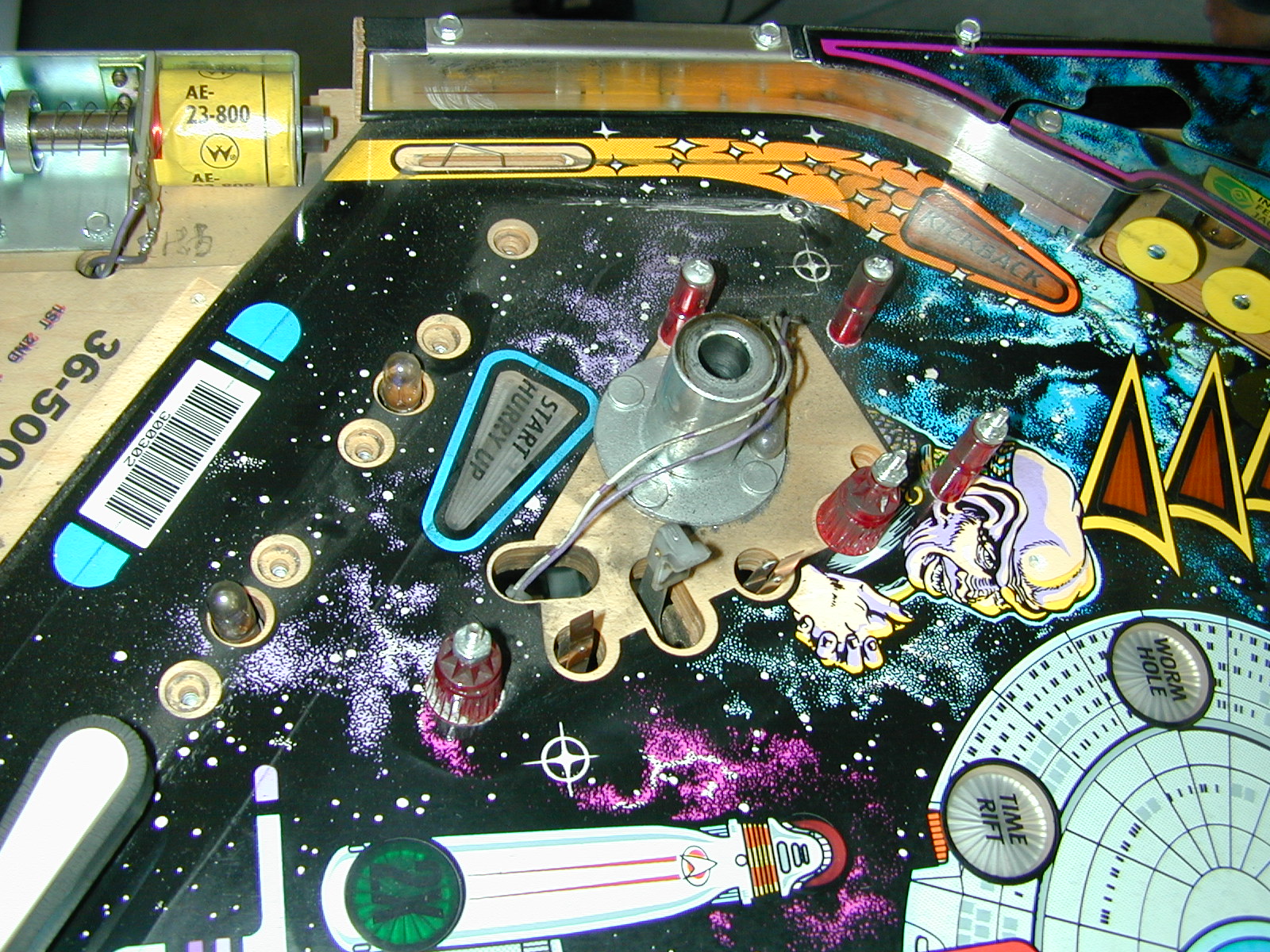

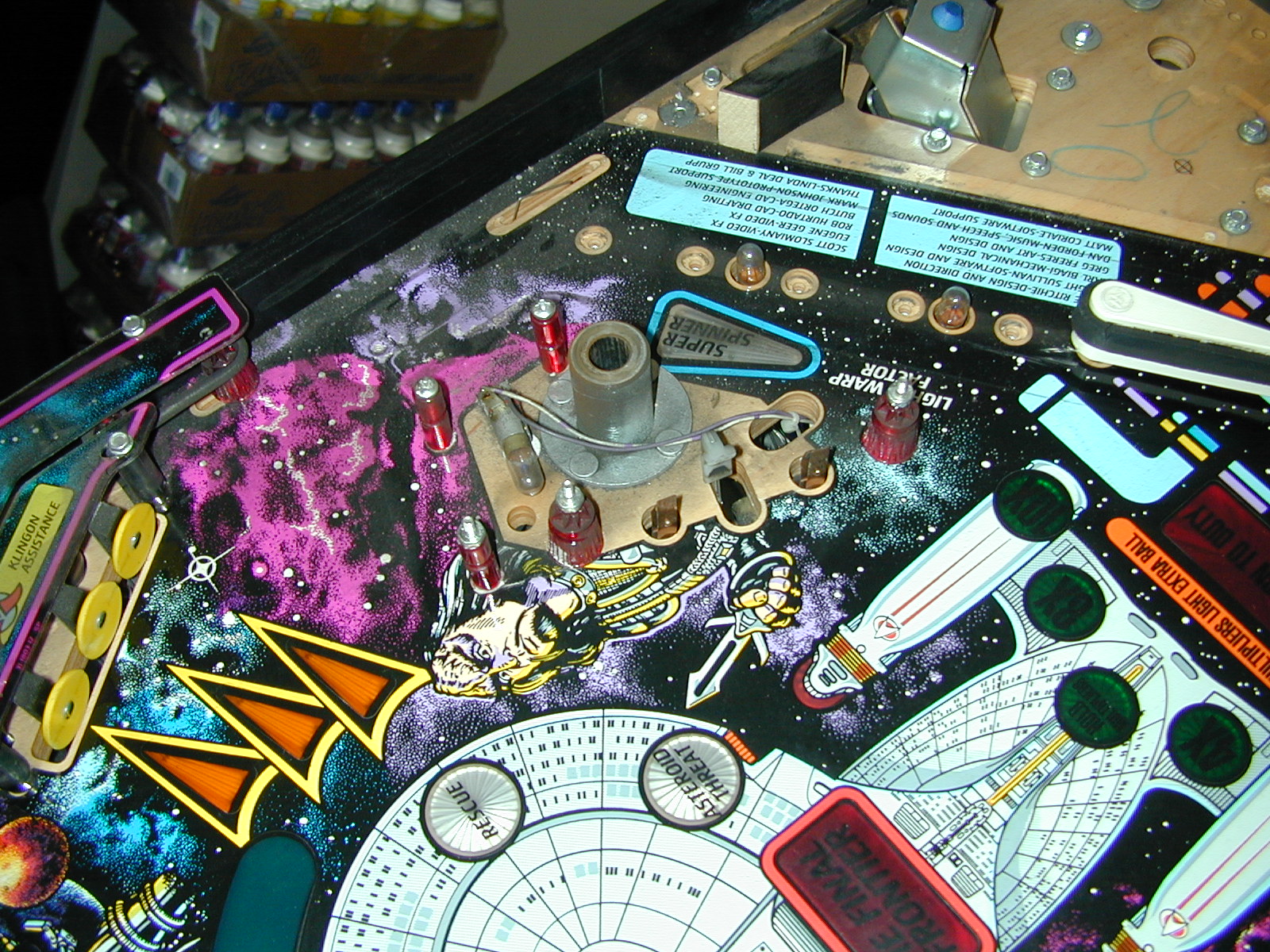

Left sling - 5 posts, 3 studs on face, 2 MS at back		 12
Right sling - 5 posts, 3 studs on face, 2 MS at back
