Star Trek: The Next Generation
Playfield Teardown


[First] [Prev] [Next] [Last]

Click to enlarge Click to enlarge Click to enlarge Click to enlarge
49

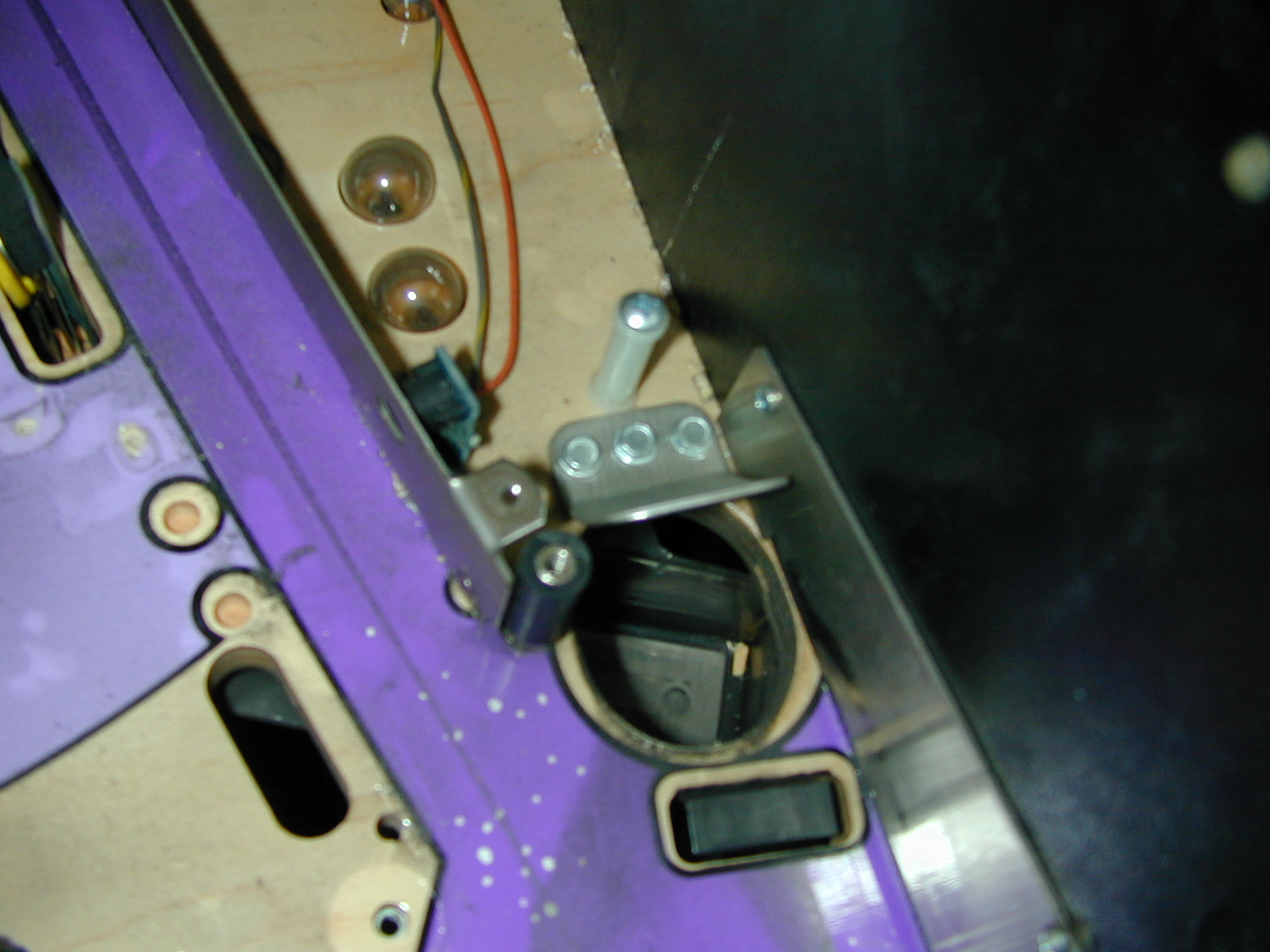

Top center hole deflector - 3 WS		 50

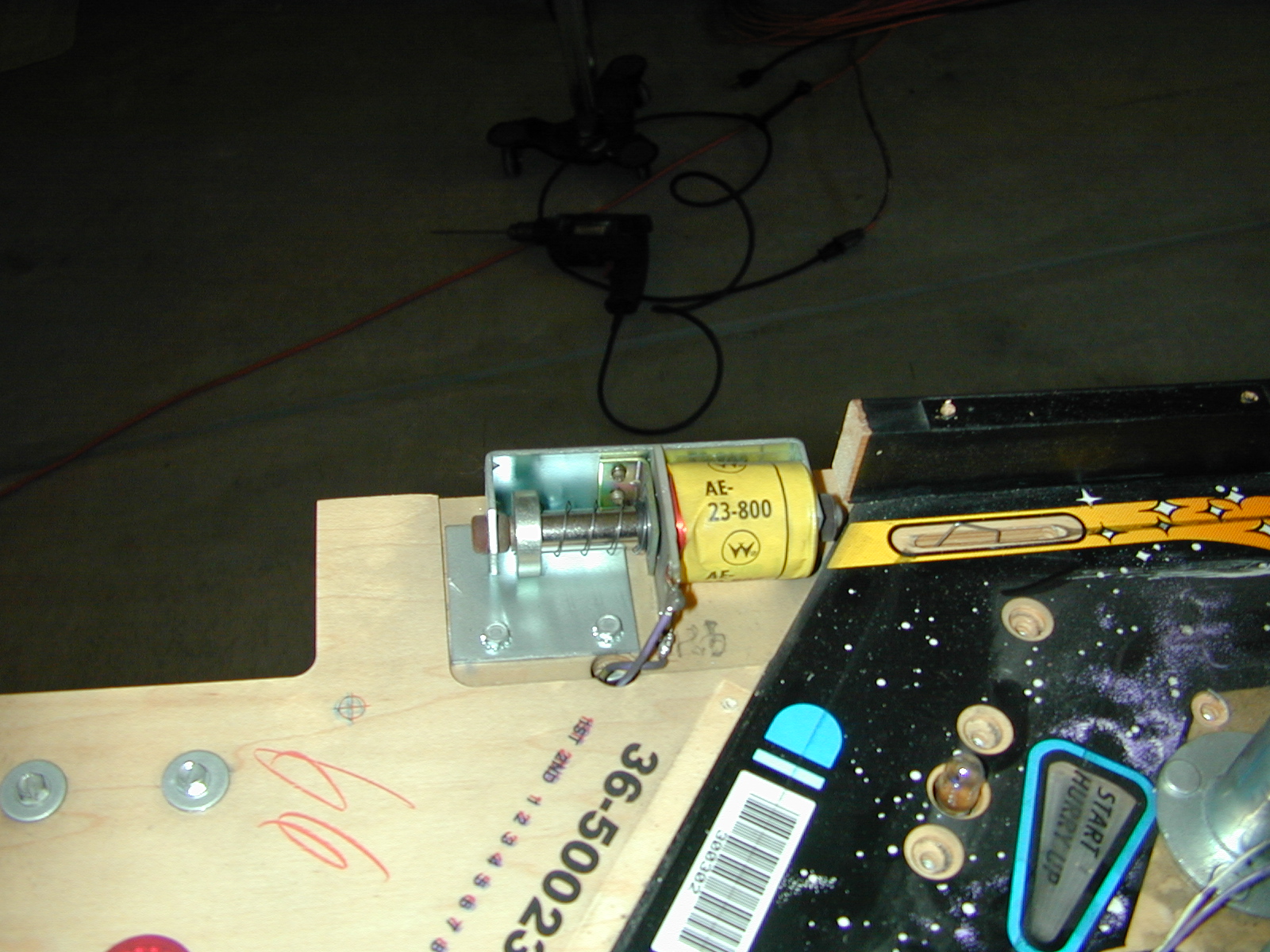

Left outlane shooter - 2 MS, 1 WS, 1 CON		 51

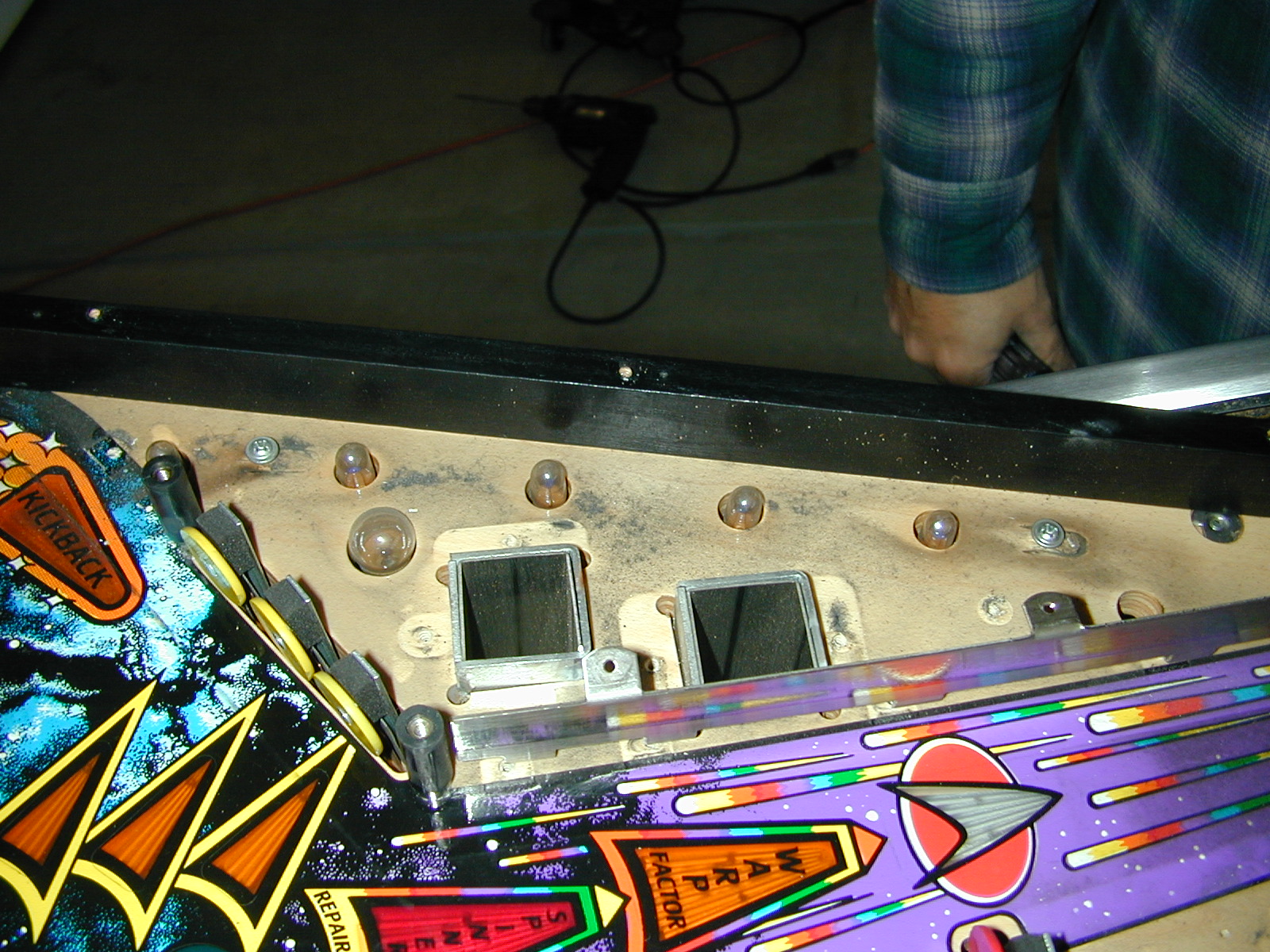

Two WS for wire ramps on left side		 52

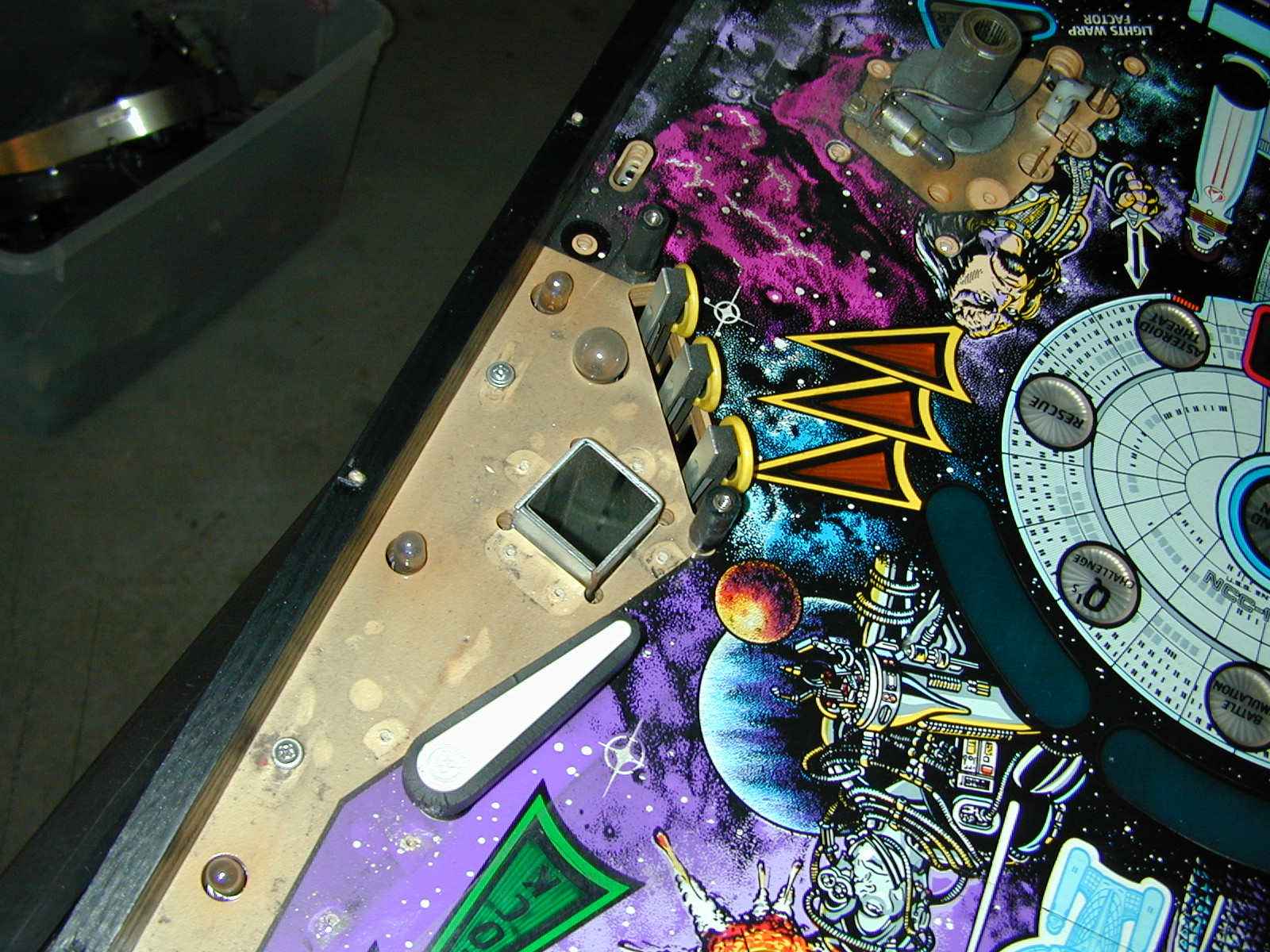

Two WS for wire ramps on right side
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
53

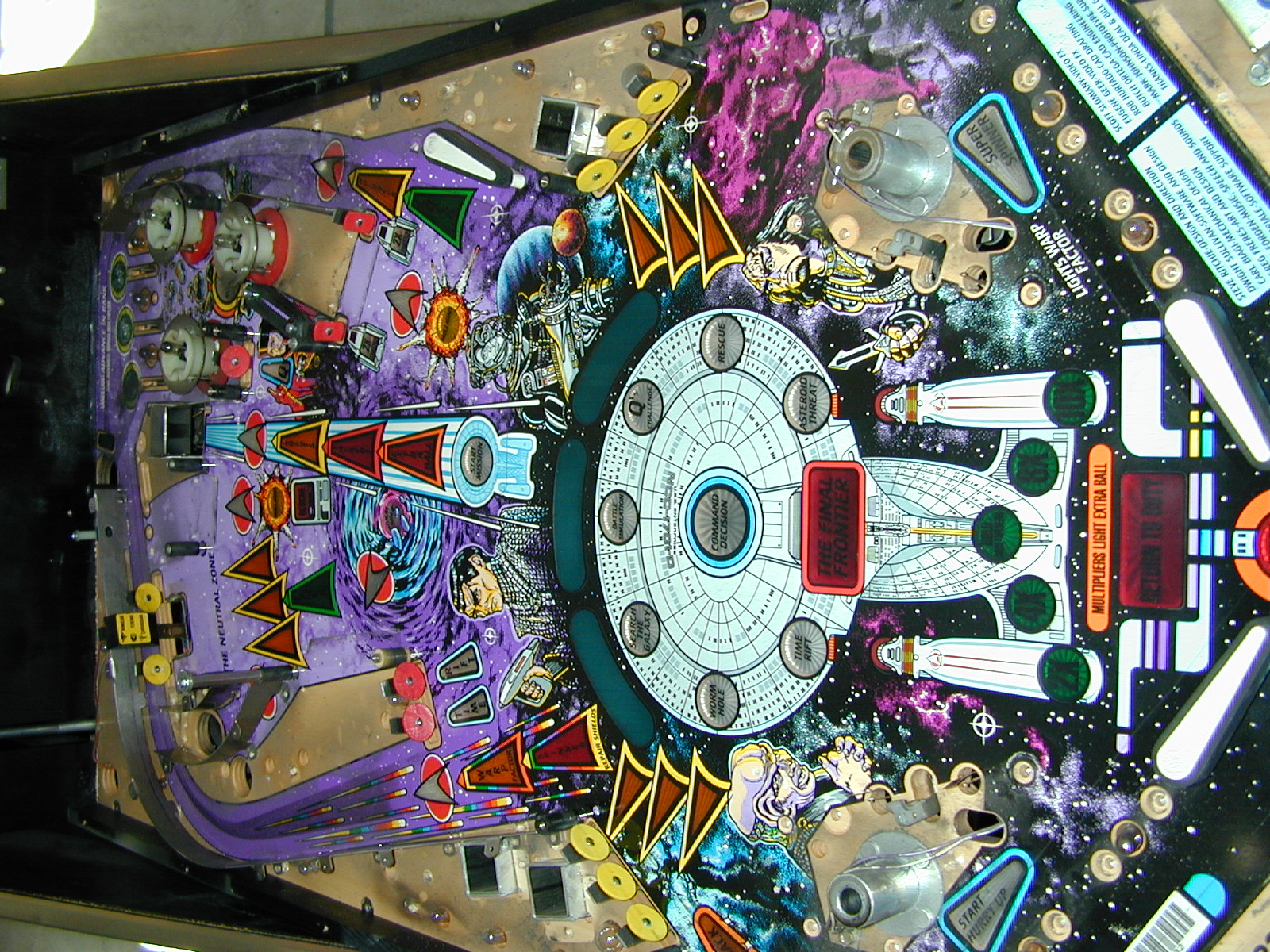

Lamps - three pop bumper 555s, 4-89s, 25-44s		 54

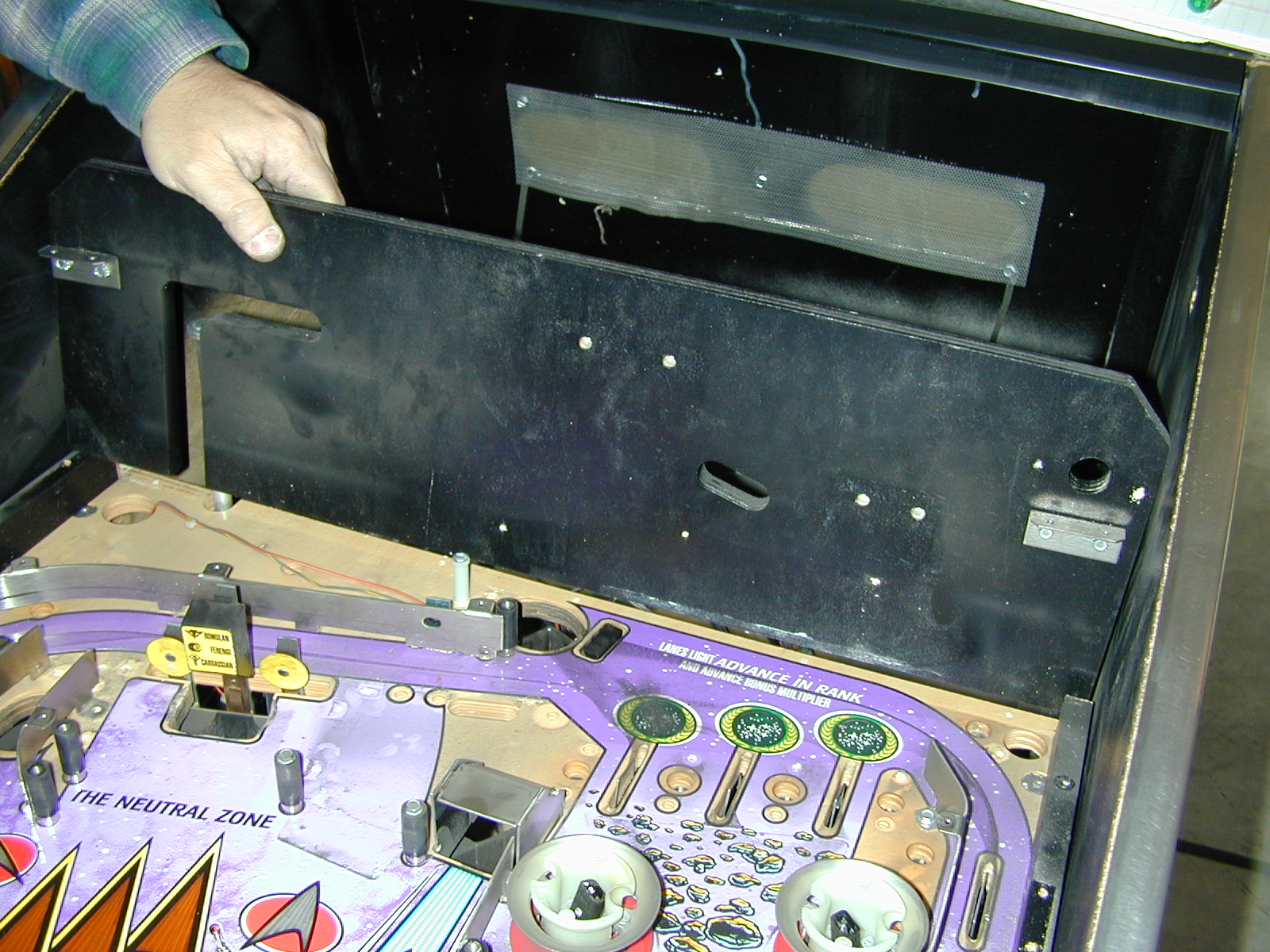

Backboard - 5 WS, 1 #89 socket with WS		 55

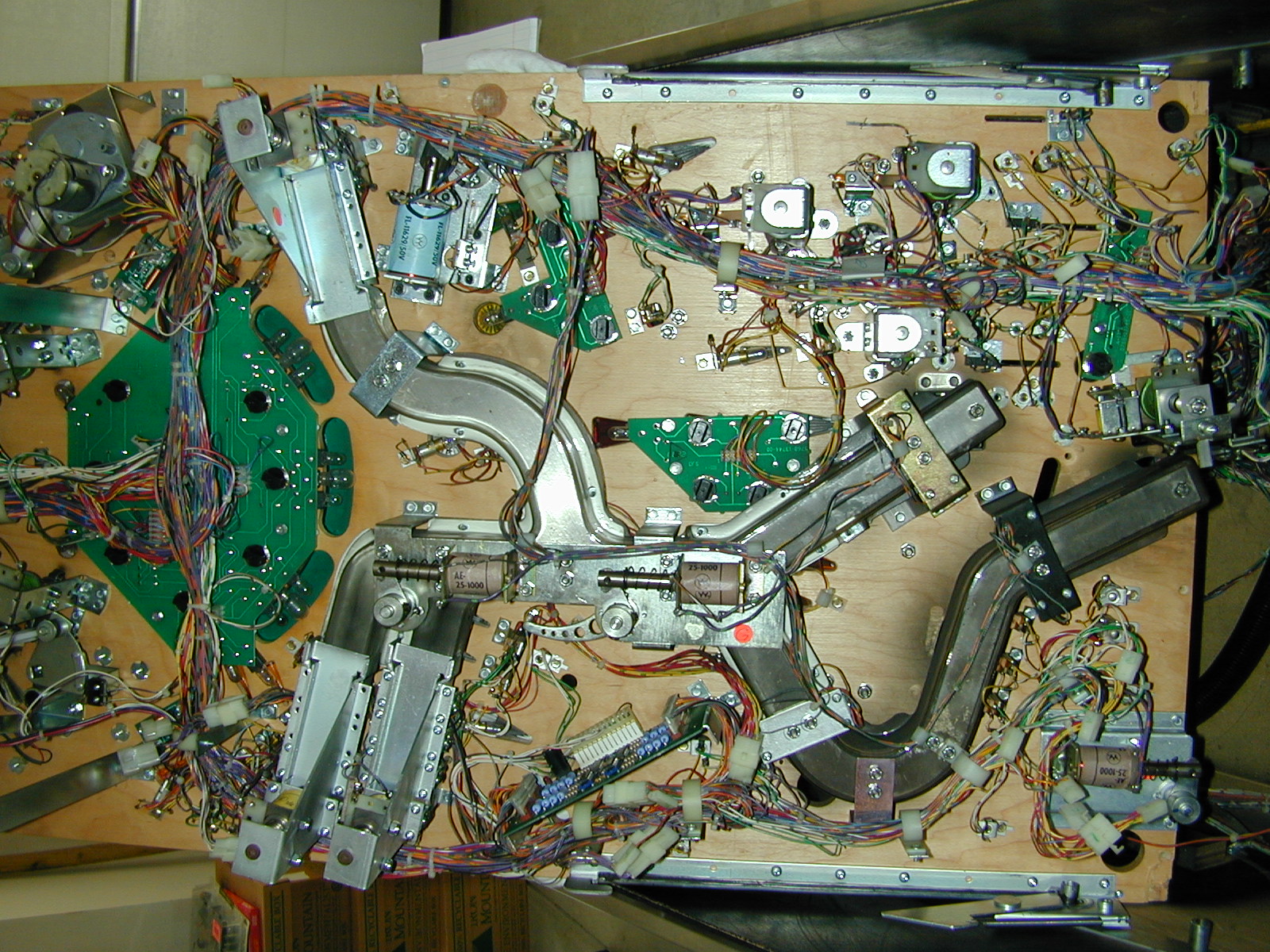

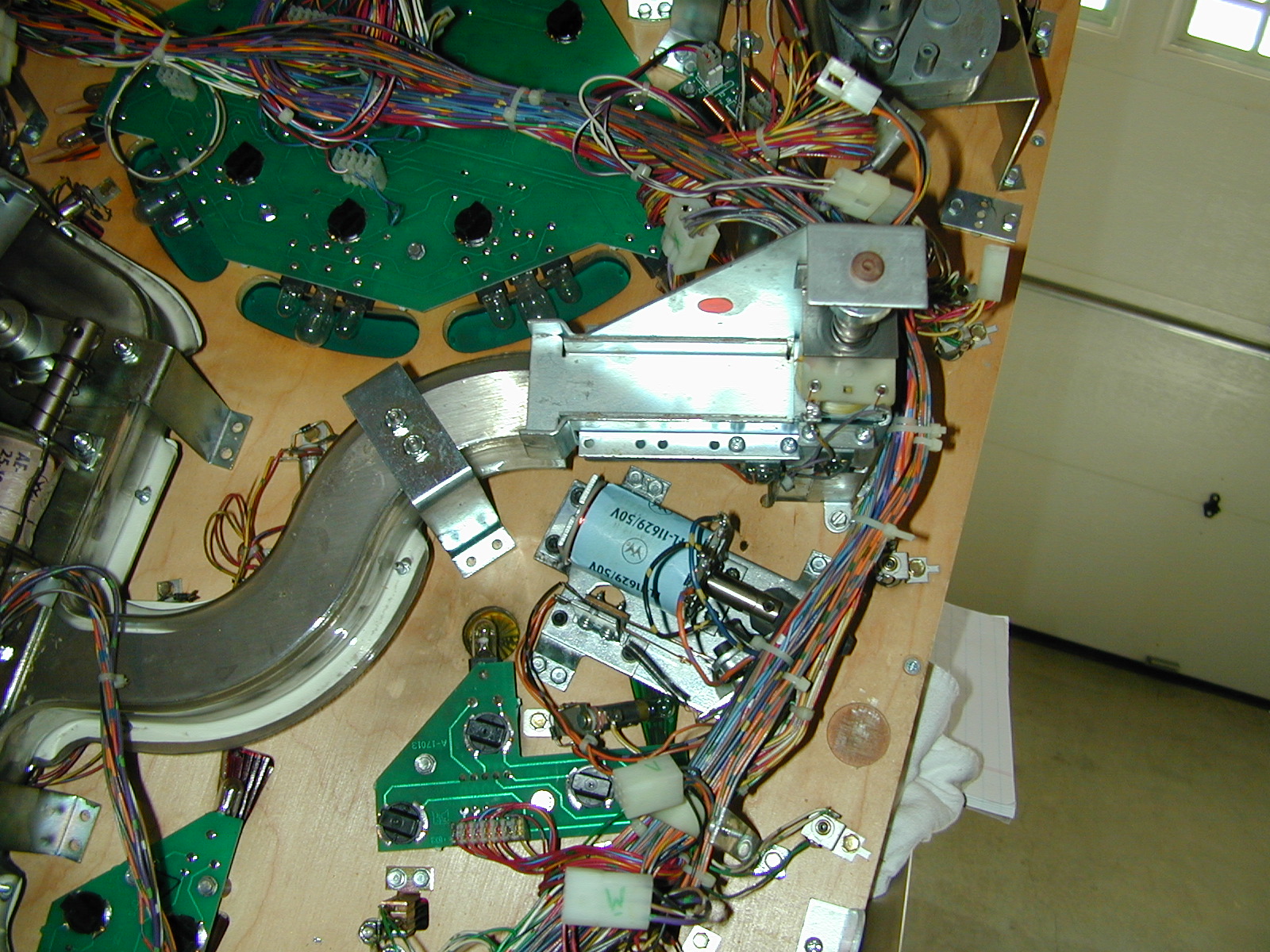

Subway ramp		 56
Mid right scoop ass'y - 4 WS, 1 CON (reverse 55/56 on re-assembly)
Click to enlarge Click to enlarge Click to enlarge Click to enlarge
57
Metal guide to lower right of center scoop - 1 WS		 58

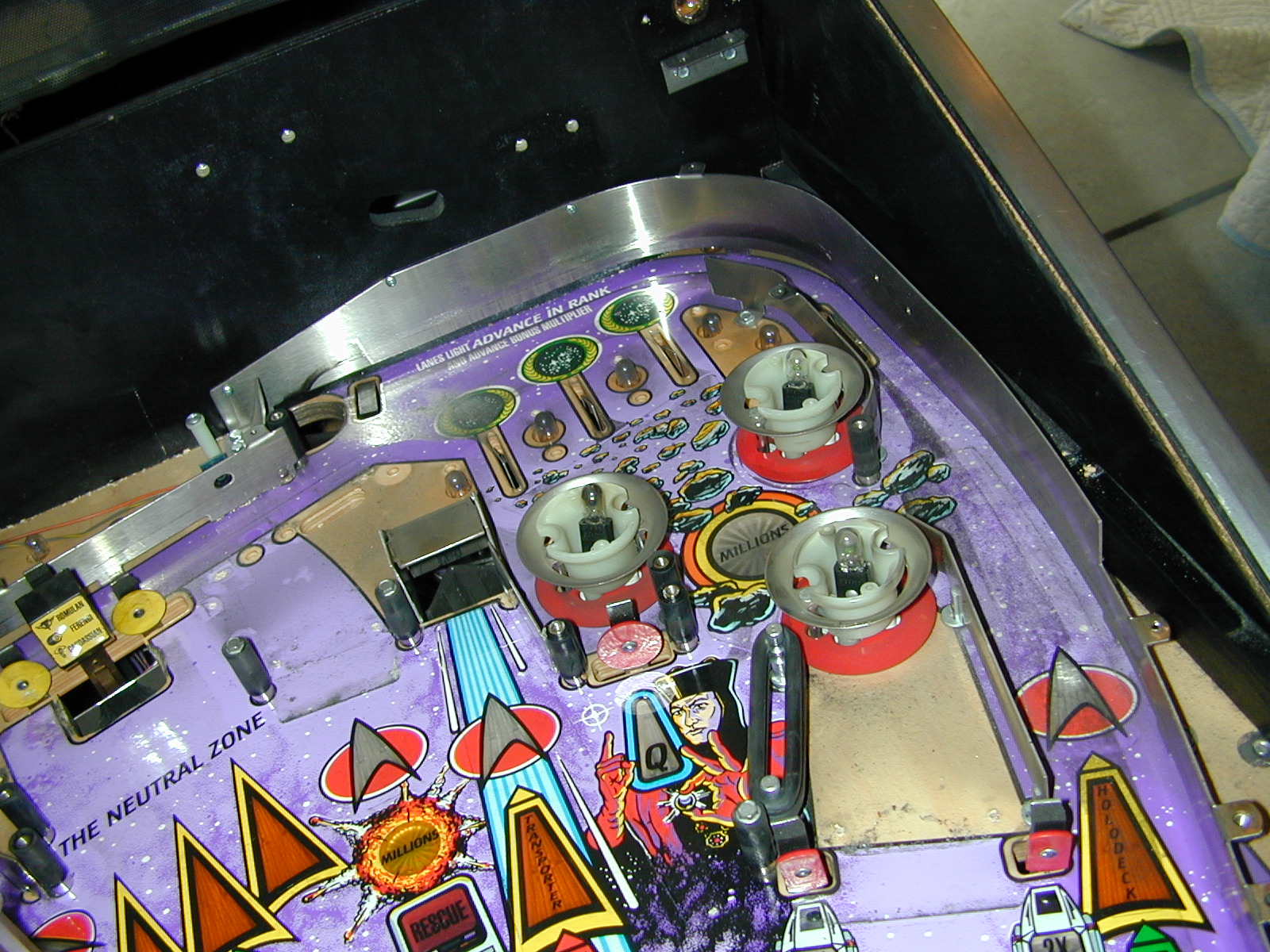

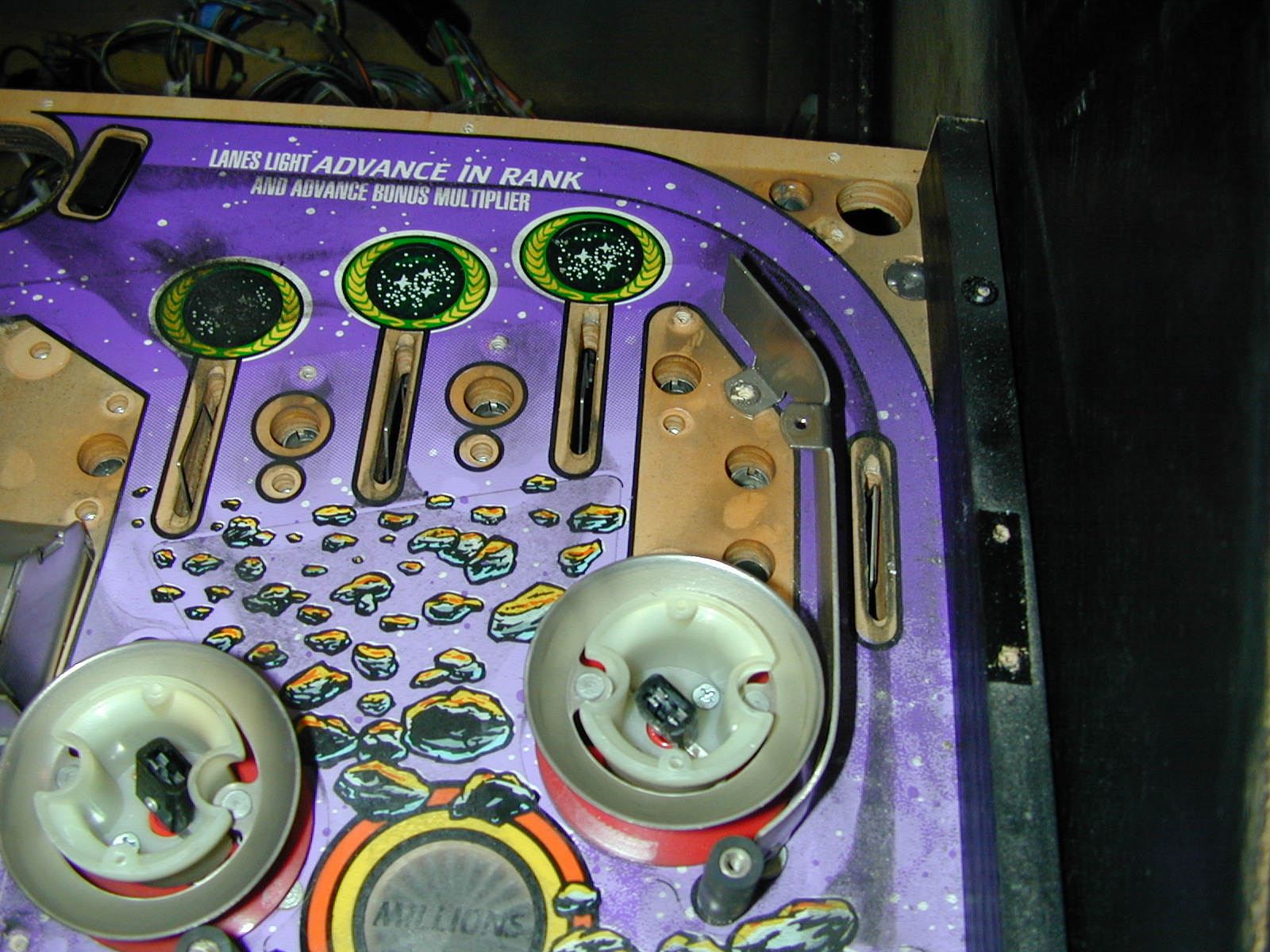

Metal guide to right of upper right pop bumper - 1 WS, 1 nut		 59
Metal guide to right of lower right pop bumper - 2 nuts		 60

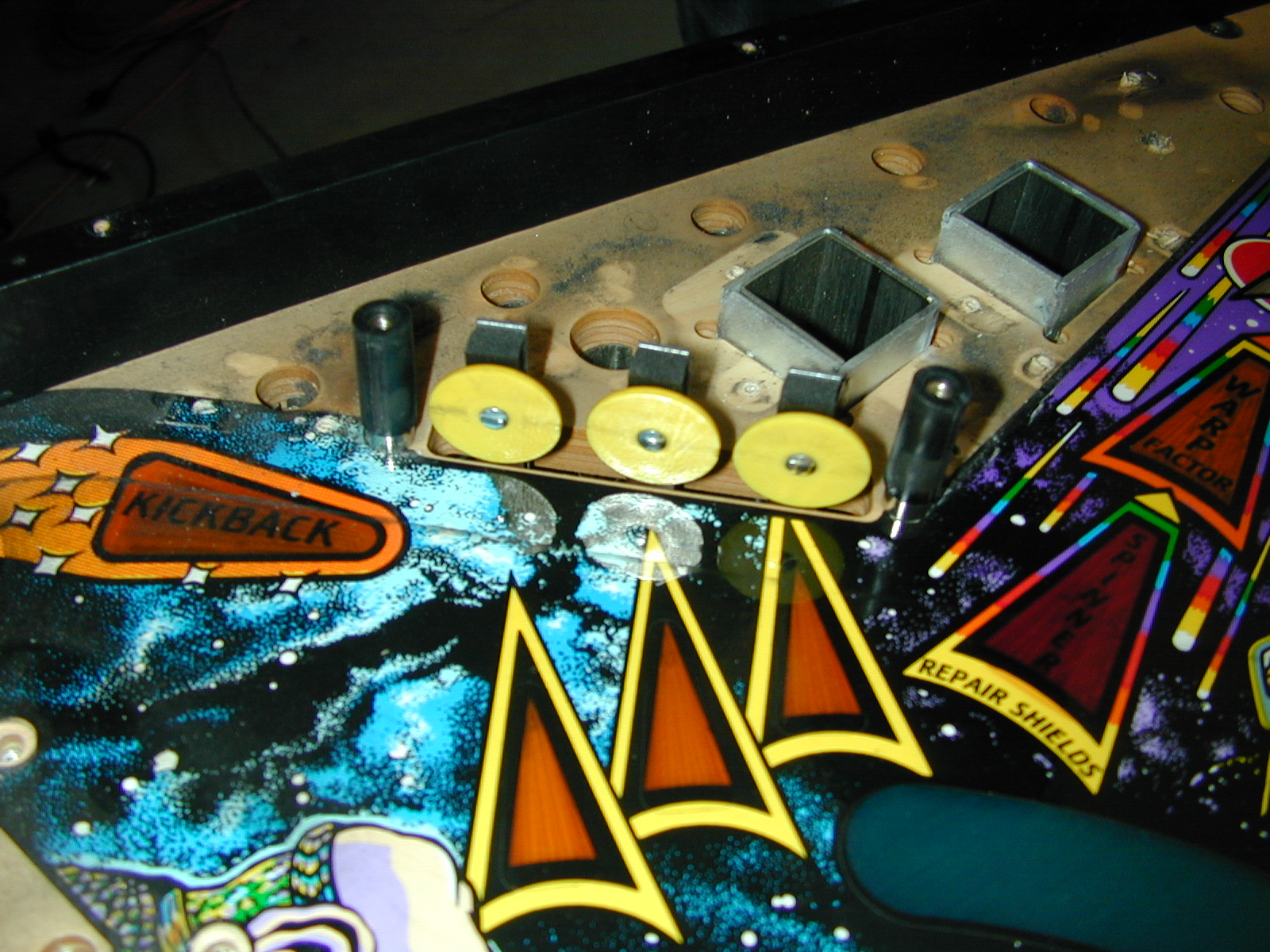

2 Black sleeve posts (BSP) around left target bank
