Star Trek: The Next Generation
Playfield Teardown




Click to enlarge Click to enlarge Click to enlarge Click to enlarge
13

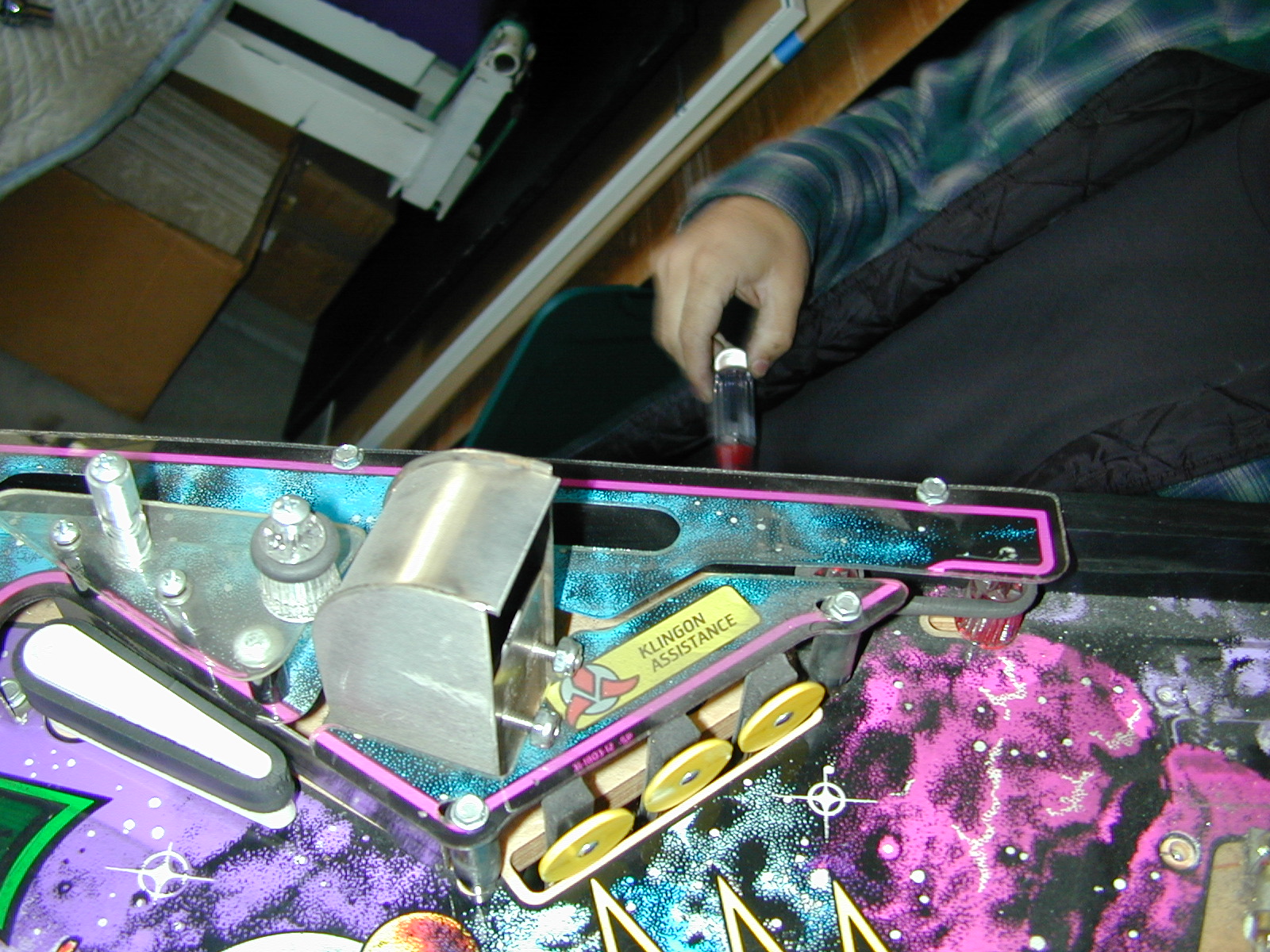

Klingon assist plastic below right 3 bank - 2 MS

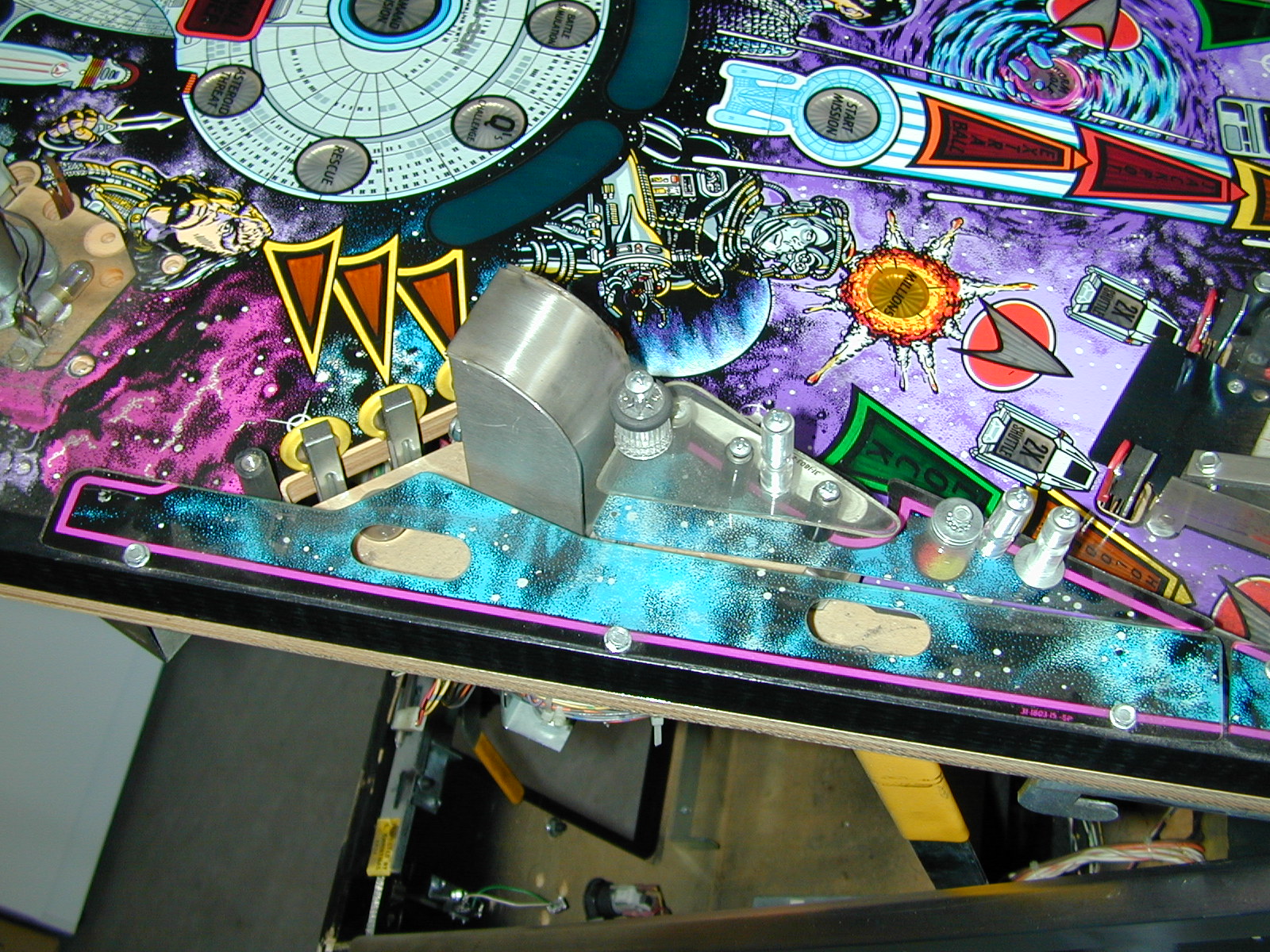

14
-15 plastic on right side - 3 WS

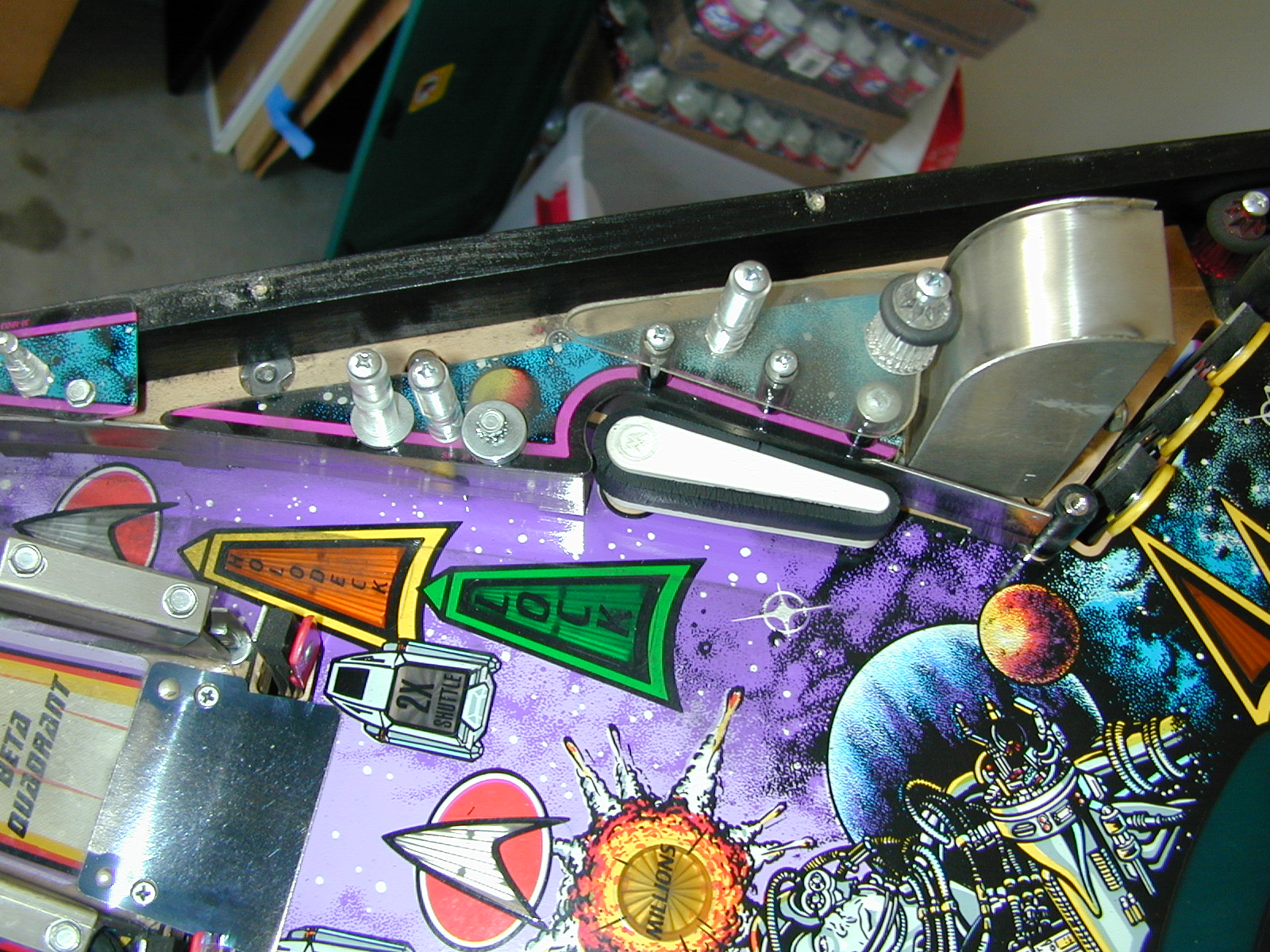

15
Plastic ass'y behind upper right flipper - clear post on top, MS w/3 washers, 1 MS below

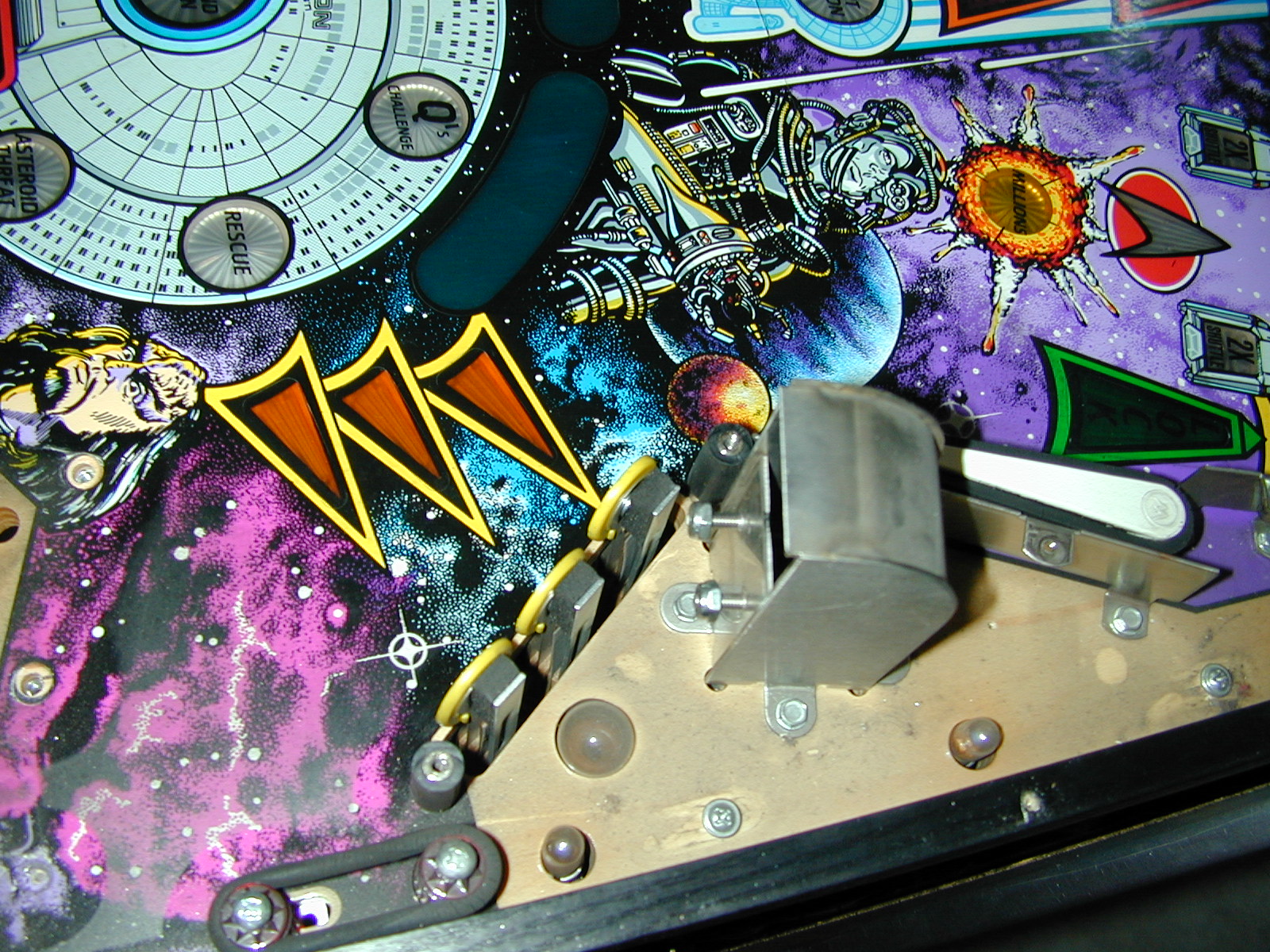

16
Right kickout scoop - 3(?) WS
Click to enlarge Click to enlarge Click to enlarge Click to enlarge

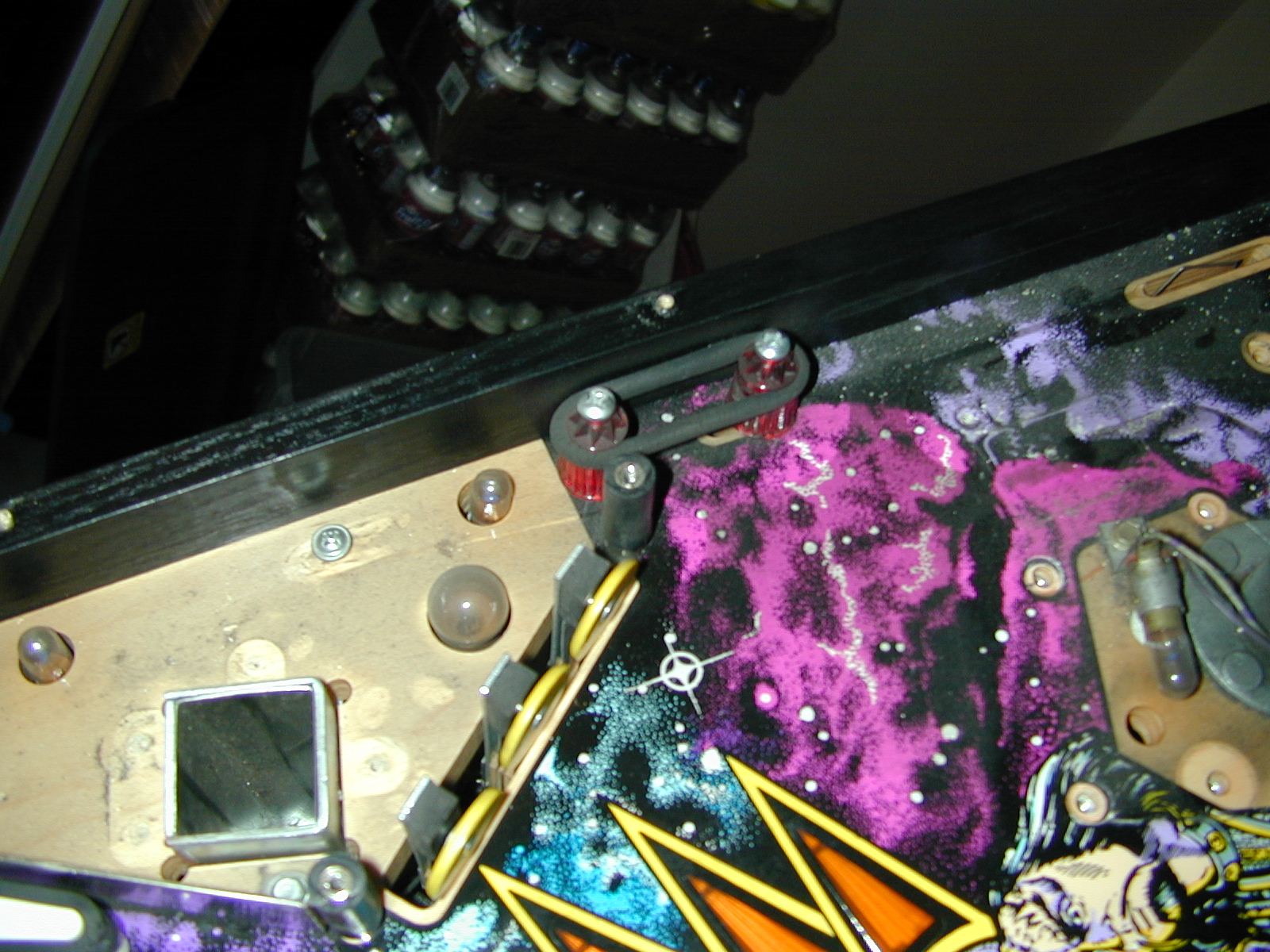

17
Two right start posts above right outlane with rubber - 2 MS, 1 nut
18
Metal guide behind upper right flipper - 2 WS

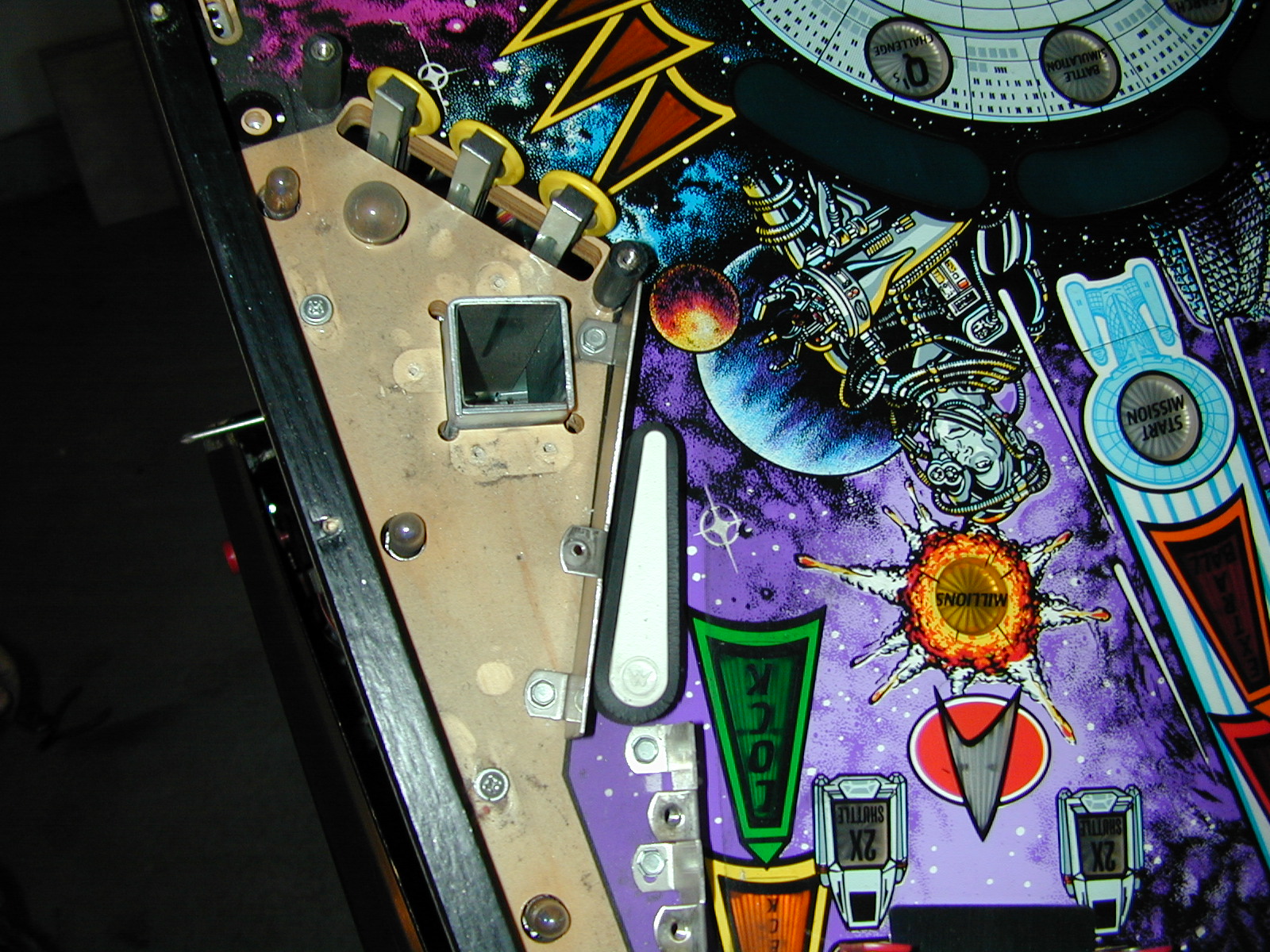

19
Plastic above 3 bank target - 2 MS

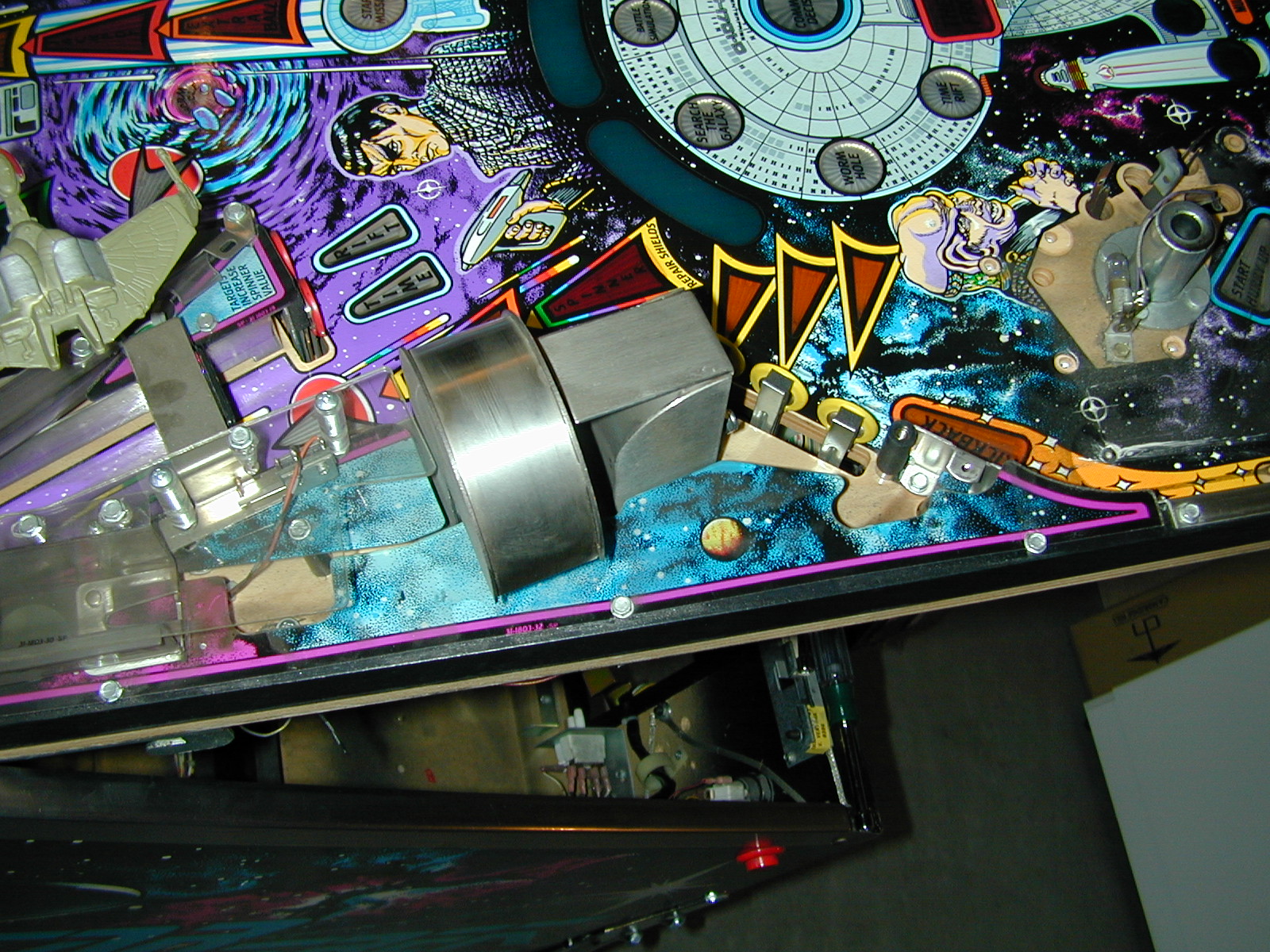

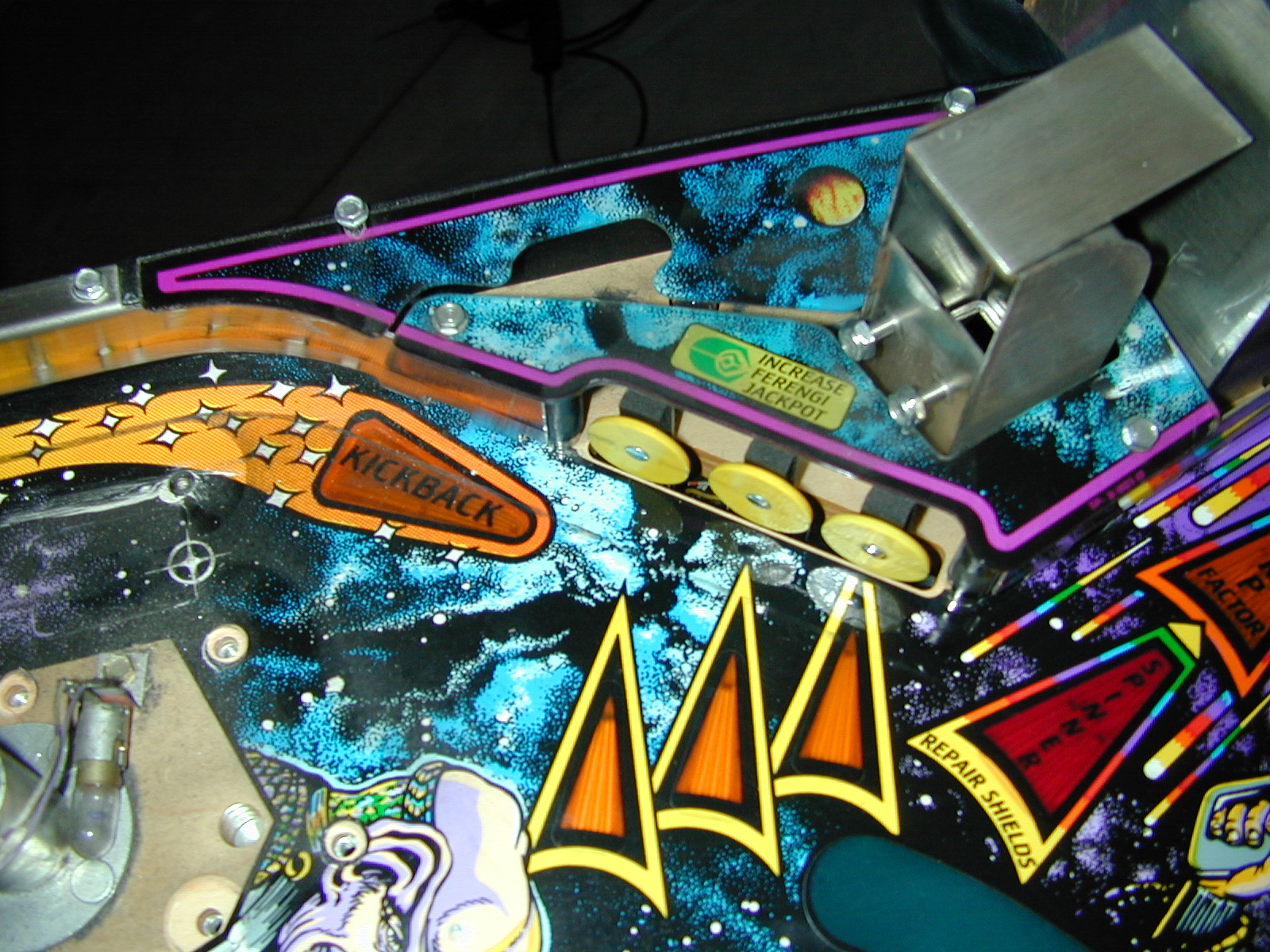

20
-32 plastic on left side - 3 WS
Click to enlarge Click to enlarge Click to enlarge Click to enlarge

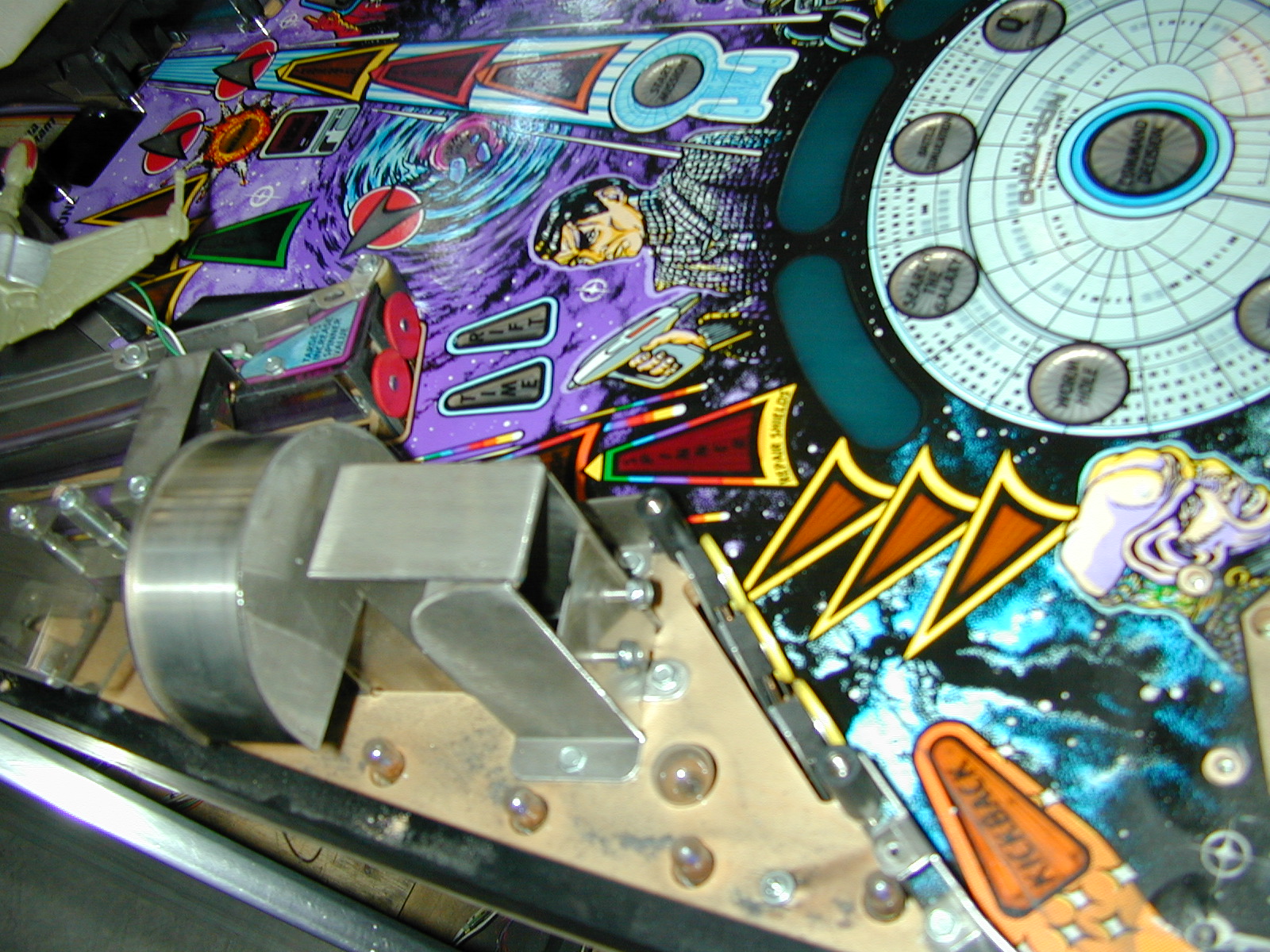

21
Left scoop - 3 WS
22

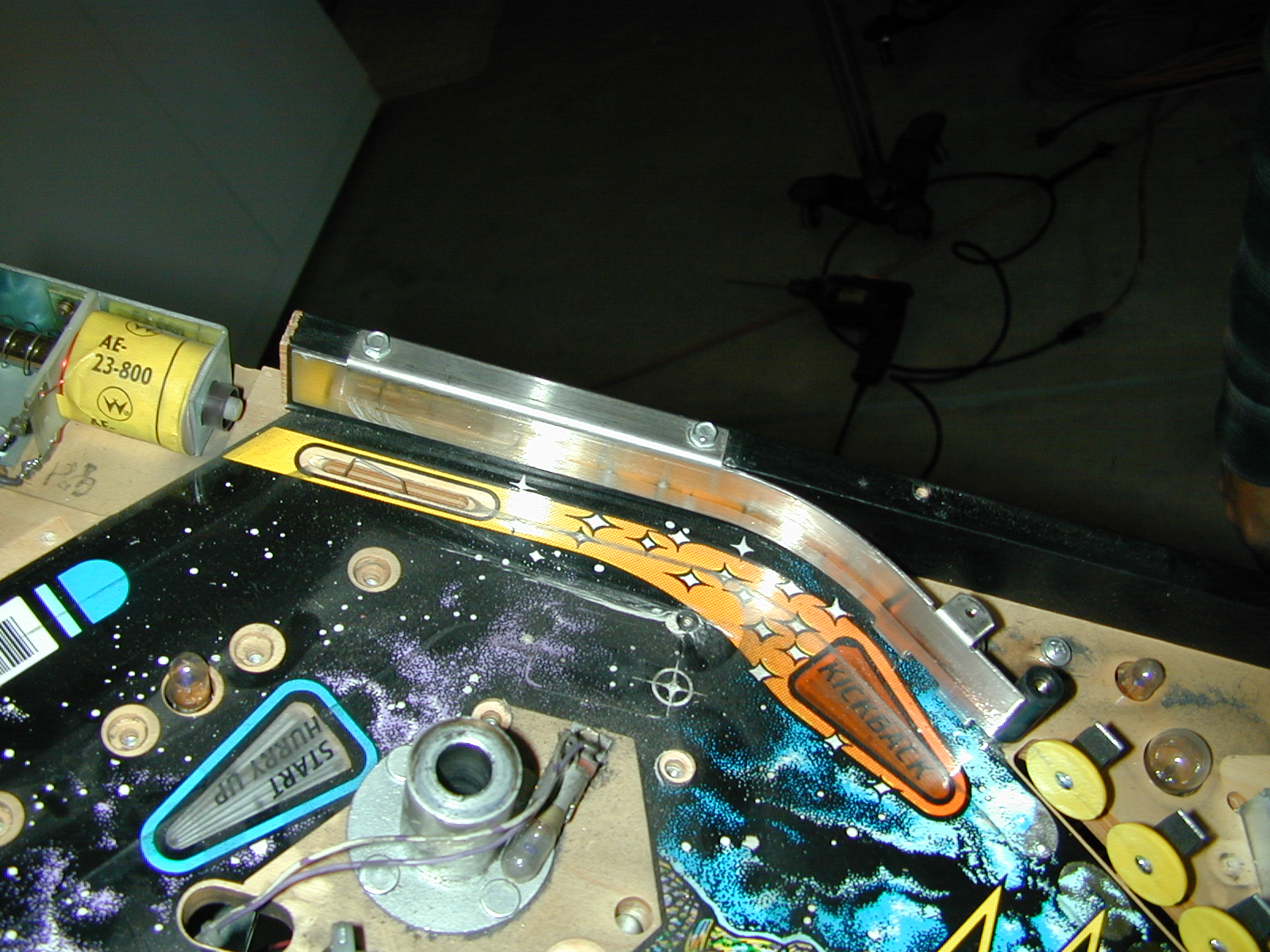

Metal guide to left of left outlane - 4 WS

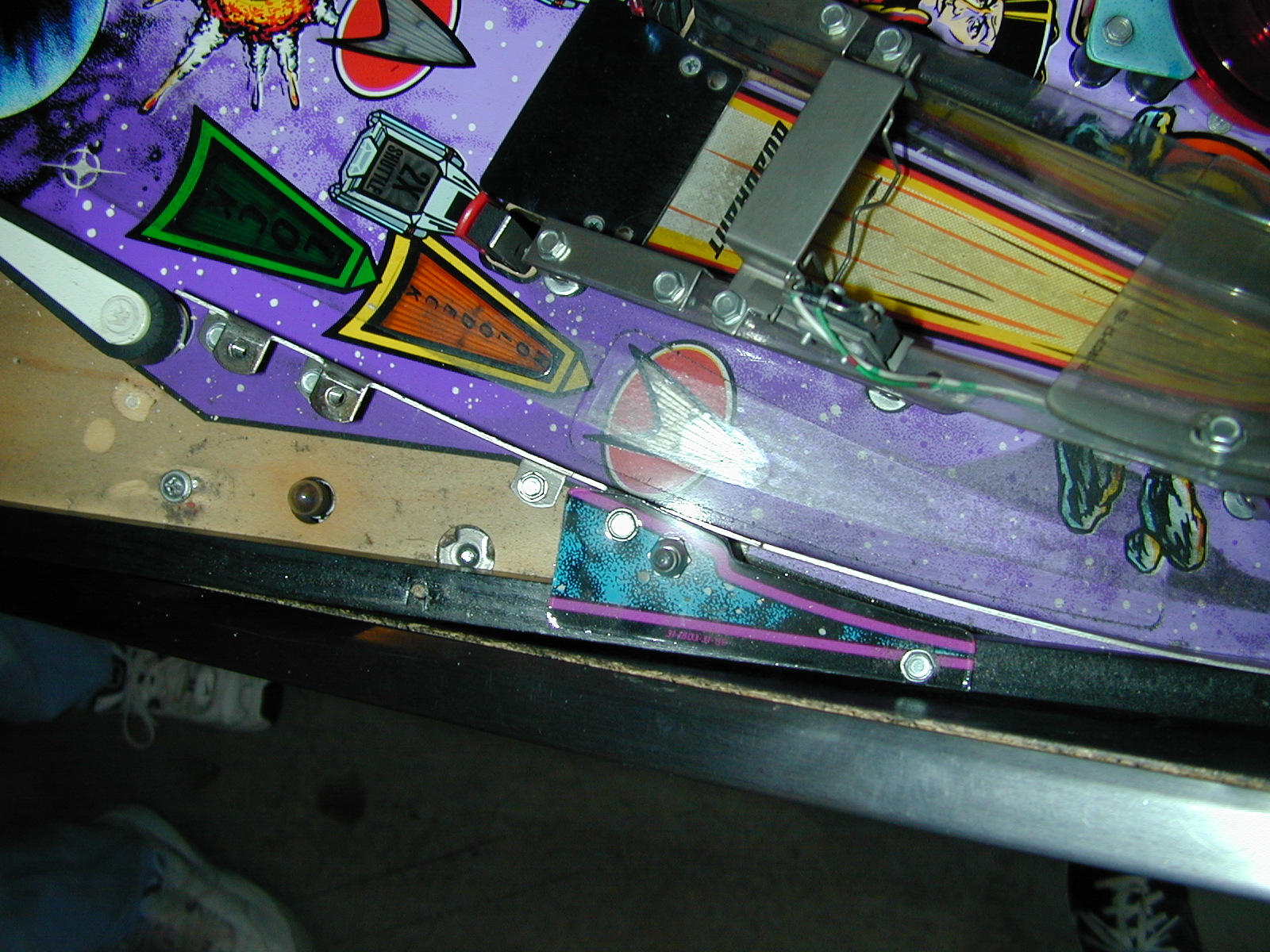

23
-31 plastic in upper right corner to right of loop - 2 WS

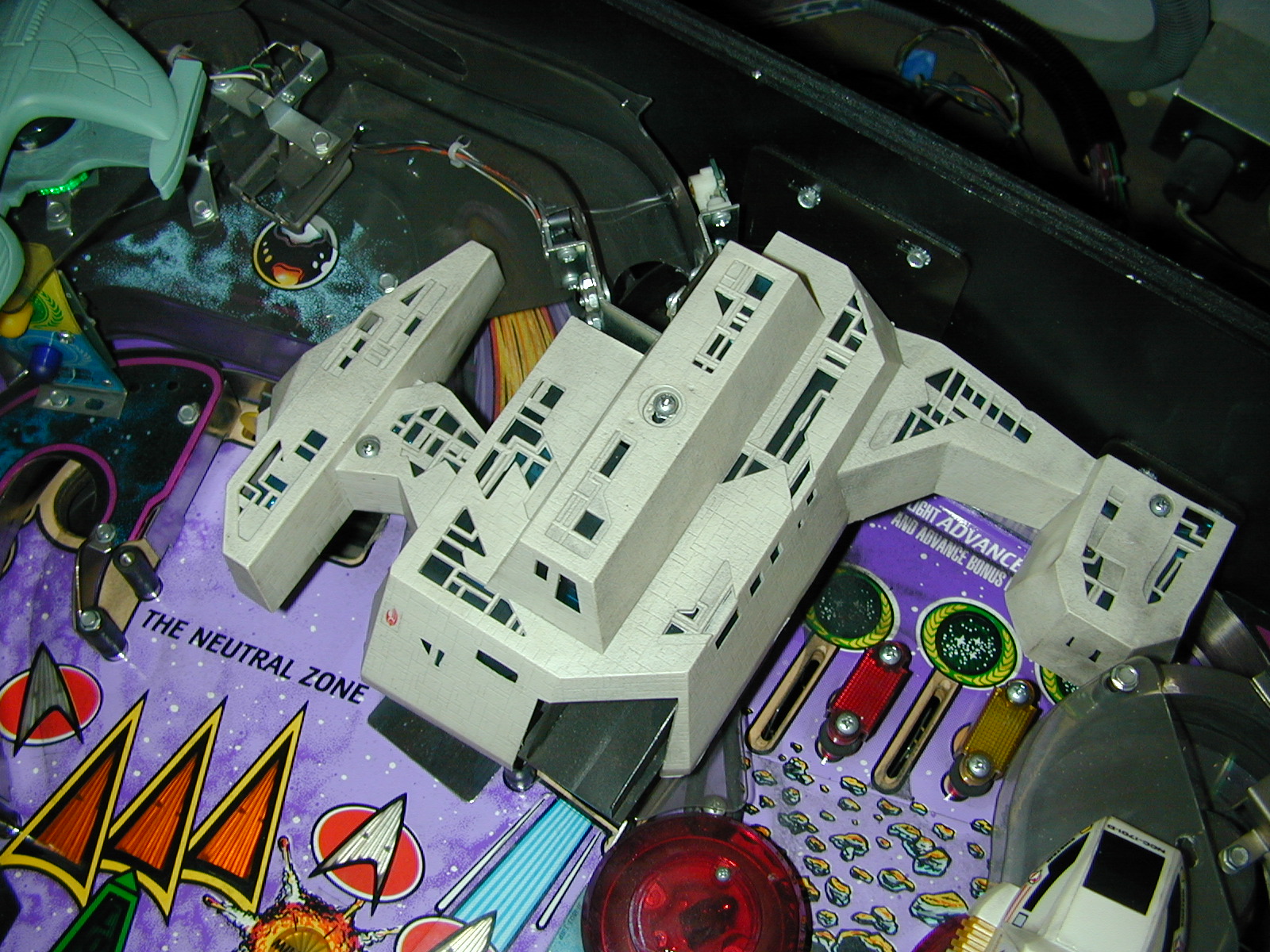

24
Large ship plastic - 3 MS
